| Application |
Detection of objects on transport equipment |
| Radio approval for |
USA; Canada; EU/RED; Australia; China; Singapore; Japan; Taiwan; India |
| Note on radio approval |
| The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”. |
|
| Operating voltage |
19.2...28.8 DC |
| Current consumption |
< 50 |
| Protection class |
III |
| Operating frequency |
13,56 |
| RFID standard |
ISO 15693 |
| Distance to the ID tag |
| referred to 30 mm coin tag; I-CODE SLI | : | ≤ 16 |
|
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Smart Sensor - SSP 0 | Generic Profiled Sensor | | Function | Device identification |
|
| SIO mode |
no |
| Required master port class |
A |
| Min. process cycle time |
22 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 967 |
|
| Ambient temperature |
-20...60 |
| Storage temperature |
-25...80 |
| Protection |
IP 67; IP 69K |
| Shock resistance |
| EN 60068-2-27 | 40 g 6 ms / repetitive | | EN 60068-2-27 | 50 g 11 ms / not repetitive |
|
| Vibration resistance |
| EN 60068-2-6 | 20 g 10...2000 Hz |
|
| Electrical safety |
| EN 61010-2-201 : 2013 +AC:2013 | |
|
| Weight |
108.75 |

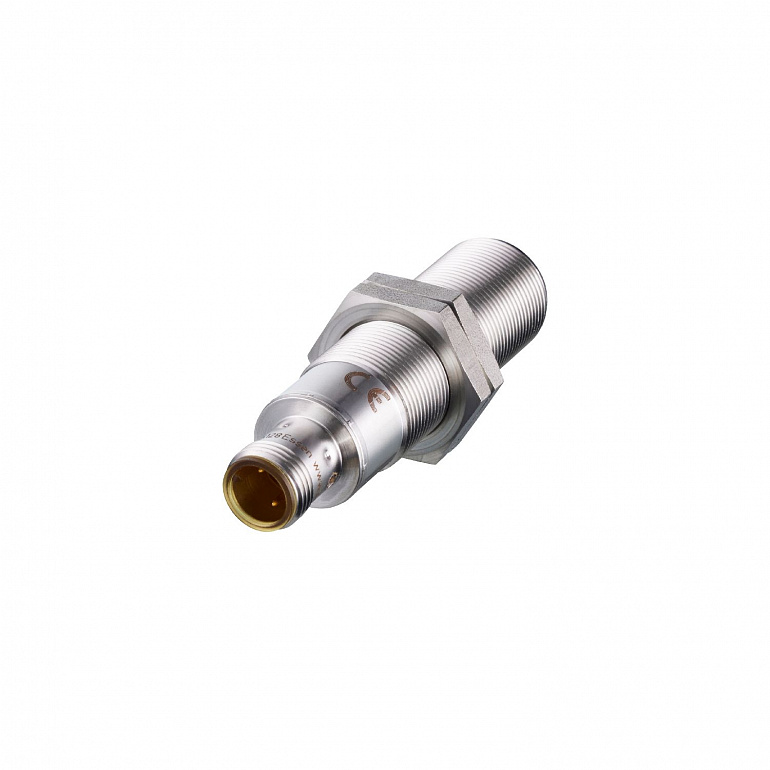

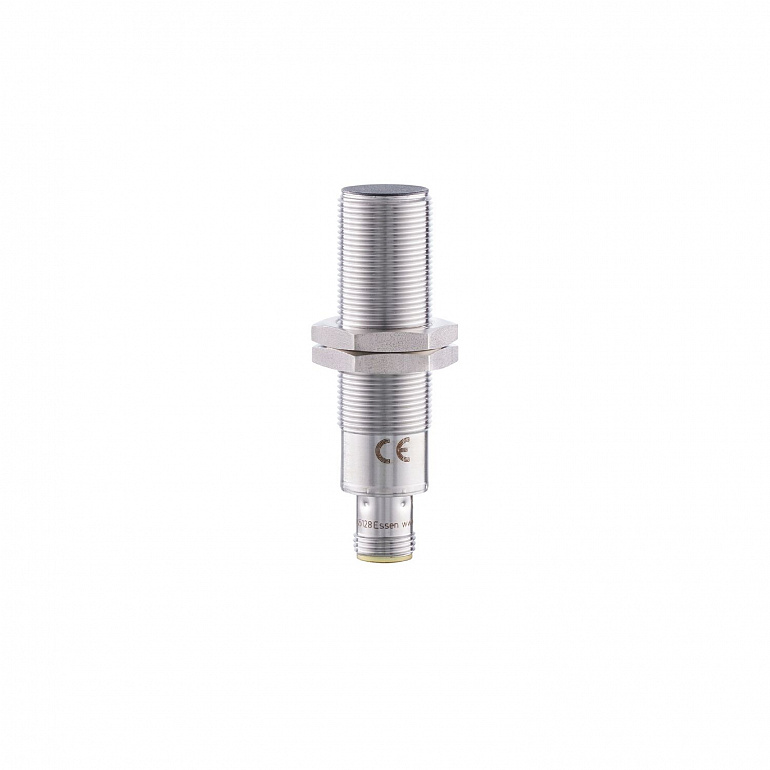

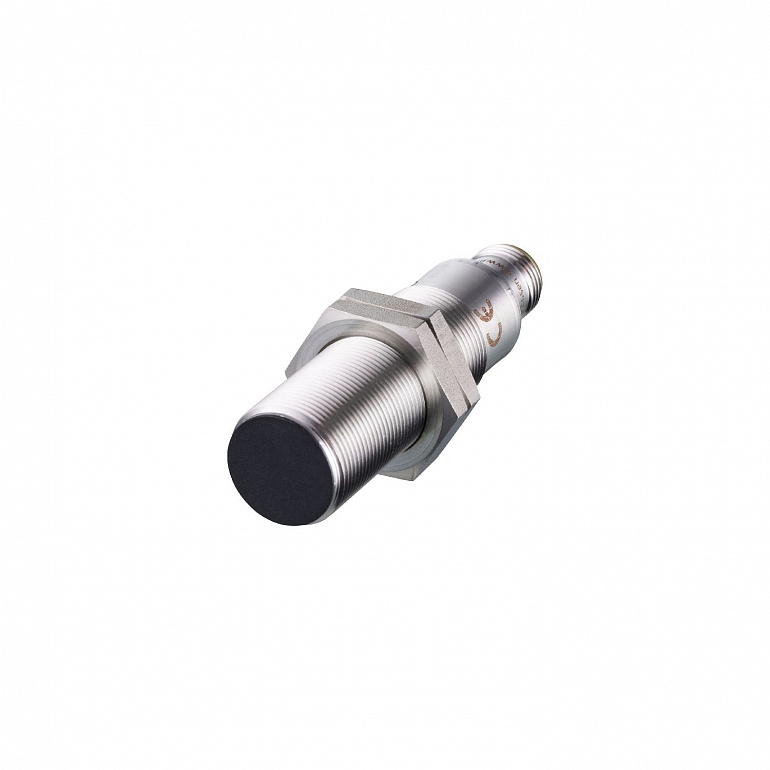

| Housing |
Threaded type |
| Mounting |
flush mountable |
| Dimensions |
M18 x 1 / L = 70 |
| Thread designation |
M18 x 1 |
| Material |
housing: stainless steel (1.4301 / 304); Protective cover: PPS; plug insert: PEI |
| Display |
| Power | 1 x LED, green | | tag communication | 1 x LED, yellow |
|
| Items supplied |
|
| Pack quantity |
1 pcs. |
| Connection |
Connector: 1 x M12; coding: A |
