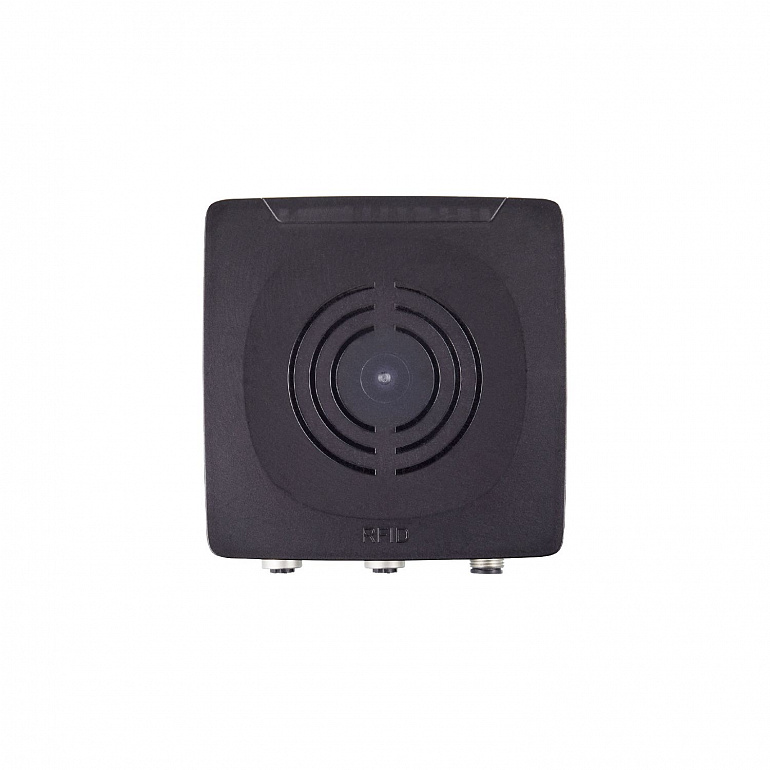

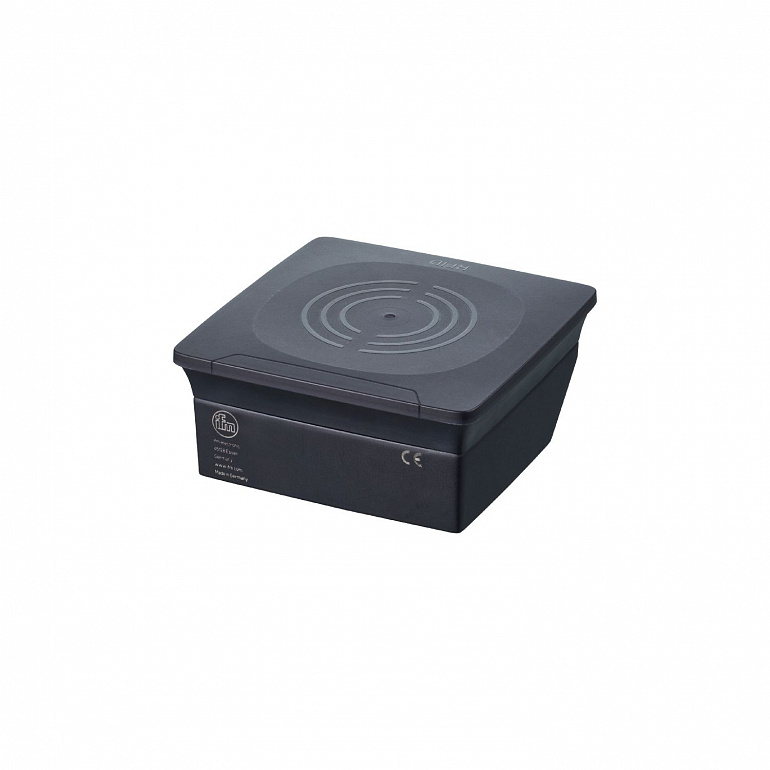

| Radio approval for |
USA; Canada; EU/RED; Australia; China; South Korea; Japan; Taiwan; Singapore; Malaysia; India; Vietnam; Indonesia |
| Note on radio approval |
| The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”. |
|
| Operating voltage |
19.2...28.8 DC |
| Current consumption |
500 |
| Protection class |
III |
| Operating frequency |
13,56 |
| RFID standard |
ISO 15693 |
| Number of inputs and outputs |
Number of digital outputs: 2 |
| Total number of outputs |
2 |
| Electrical design |
push-pull |
| Number of digital outputs |
2 |
| Max. voltage drop switching output DC |
2 |
| Max. current load per output |
100; (max.) |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Distance write/read head front |
600 |
| Distance write/read head side |
850 |
| Note on distance write/read head |
|
| Distance to the ID tag |
| 50 mm transponder | : | ≤ 150 | | ISO card | : | ≤ 180 |
|
| Communication interface |
Ethernet |
| Protocol |
PROFINET |
| Usage type |
Data transmission |
| Protocol |
TCP/IP |
| Factory settings |
| IP address: 192.168.0.79 | | subnet mask: 255.255.255.0 | | gateway IP address: 192.168.0.100 |
|
| Usage type |
Parameter setting |
| Ambient temperature |
-20...60 |
| Storage temperature |
-25...80 |
| Protection |
IP 67 |
| Shock resistance |
| IEC 60028-2-27 | 40 g (6 ms) / bump | | 50 g (11 ms) / single shock |
|
| Vibration resistance |
| EN 60068-2-6 | 2 g (10...150 Hz) |
|
| MTTF |
130 |
| Weight |
641.5 |
| Dimensions |
113 x 118.6 x 50 |
| Material |
lower part: aluminum; Upper part: PBT / PC; plug: stainless steel |
| Display |
| voltage supply | 1 x LED, green | | LED display | 4 x LED, yellow signal strength ID tag | | status | 2 x LED, green/red fieldbus interface | | status | 2 x LED, green/yellow Ethernet |
|
| Pack quantity |
1 pcs. |

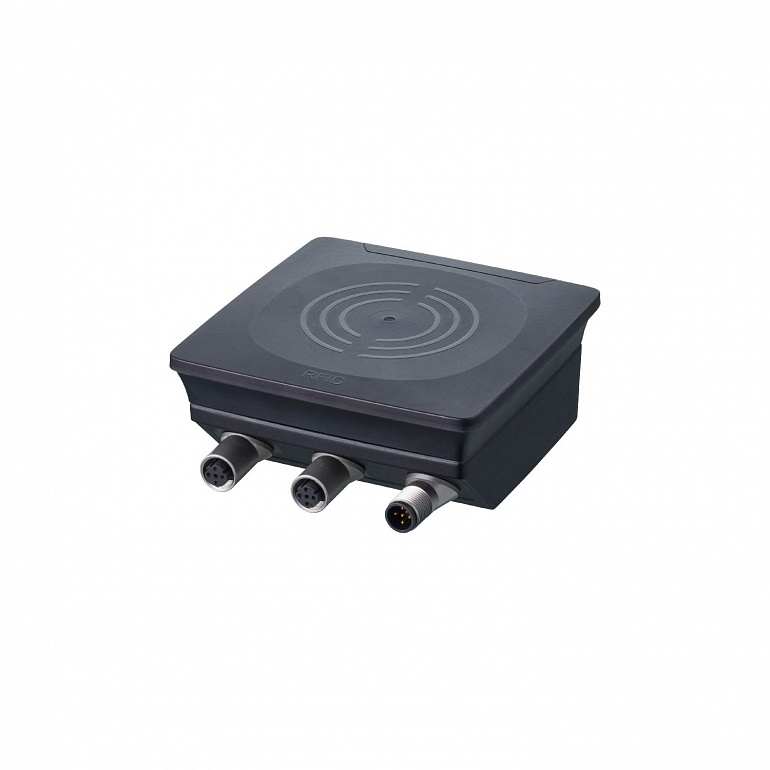

| ETH1 / ETH2 |
Connector: 2 x M12; coding: D |
| PWR |
Connector: 1 x M12; coding: A |
