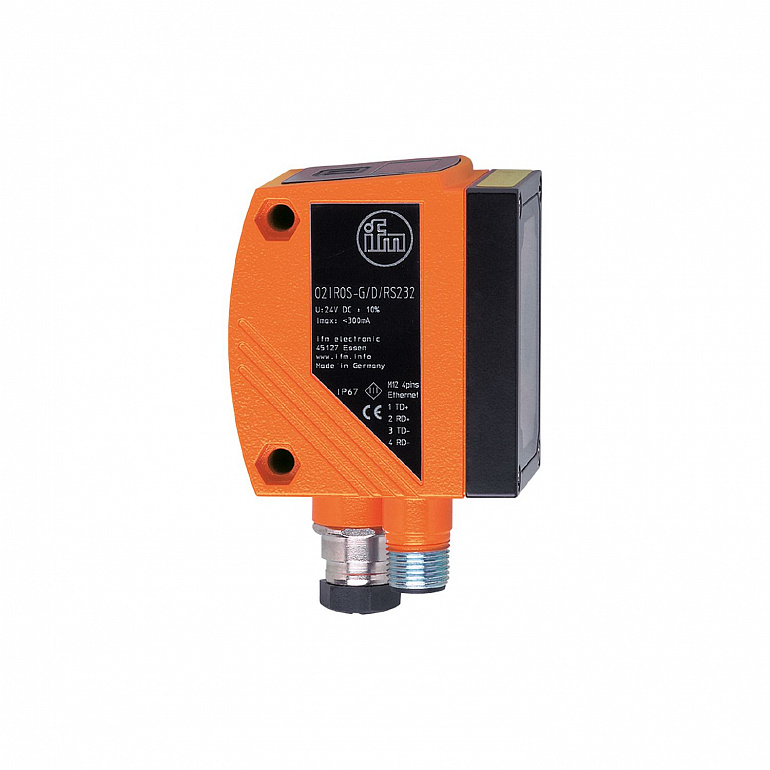

| Type of light |
red light |
| Image resolution |
640 x 480 |
| Max. reading rate |
20 |
| Operating voltage tolerance |
10 |
| Operating voltage |
24 DC |
| Current consumption |
< 300 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Type of light |
red light |
| Wave length |
625 |
| Image sensor |
CMOS image sensor black/white |
| Integrated lighting |
yes; (red light: 625 nm 4 lighting segments individual control via PC operating program) |
| Laser marking |
yes; (red; Laser protection class 2 DIN EN 60825-1) |
| Number of inputs and outputs |
Number of digital outputs: 2 |
| Trigger |
internal; 24 V PNP (IEC 61131-2 Typ 1); RS-232; TCP/IP; EtherNet/IP |
| Total number of outputs |
2 |
| Number of digital outputs |
2; (configurable) |
| Output function |
24 V PNP |
| Max. voltage drop switching output DC |
2 |
| Max. current load per output |
100 |
| Short-circuit protection |
yes |
| Overload protection |
yes |
| Field of view size |
| Operating distance | Field of view | Smallest detectable object | Resolution | | 50 | 16 x 12 | | | | 100 | 32 x 24 | | | | 200 | 64 x 48 | | |
|
| Operating distance |
> 50 |
| Image resolution |
640 x 480 |
| Lens type |
standard |
| Readable codes |
Interleaved 2-of-5; Industrial 2-of-5; Code 39; Code 93; Code 128; Pharmacode; Codabar; EAN8; EAN8 Add-On 2; EAN8 Add-On 5; EAN13; EAN13 Add-On 2; EAN13 Add-On 5; UPC-A; UPC-A Add-On 2; UPC-A Add-On 5; UPC-E; UPC-E Add-On 2; UPC-E Add-On 5; GS1 DataBar Omnidirectional; GS1 DataBar Truncated; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Limited; GS1 DataBar Expanded; GS1 DataBar Expanded Stacked; GS1 - 128; MSI Barcode; ECC200; PDF-417; QR; Micro-QR; Aztec Code; GS1 ECC200; GS1 QR Code; GS1 Aztec Code |
| Omnidirectional reading |
yes |
| Max. inclination to the image plane |
45 |
| Max. reading rate |
20 |
| Parameter setting options |
via 2 pushbuttons and 10-segment display or via PC / notebook with operating software |
| Communication interface |
Ethernet; RS232 |
| Number of R232 interfaces |
1 |
| Number of Ethernet interfaces |
1 |
| Transmission standard |
10Base-T; 100Base-TX |
| Transmission rate |
10; 100 |
| Protocol |
TCP/IP; UDP; EtherNet/IP |
| Factory settings |
| IP address: 192.168.0.79 | | subnet mask: 255.255.255.0 | | gateway IP address: 192.168.0.201 | | MAC address: see type label |
|
| Ambient temperature |
-10...50 |
| Storage temperature |
-40...85 |
| Protection |
IP 67 |
| EMC |
| radiation of interference | EN 61326 | | noise immunity | EN 61326 |
|
| Shock resistance |
|
| Vibration resistance |
|
| UL approval |
|
| Weight |
415.5 |
| Dimensions |
60 x 42 x 53.5 |
| Material |
housing: diecast zinc powder-coated; front lens: glass; LED window: PC |
| Display |
| Function | 3 x LED, green | | Switching status | 4 x LED, yellow | | 10-segment display, 4-digit |
|
| Accessories (optional) |
| Operating software | | Mounting accessories |
|
| Remarks |
| cULus - Class 2 source required |
|
| Pack quantity |
1 pcs. |
|
Connector: 1 x M12; coding: D |
|
Connector: 1 x M12; coding: A |
