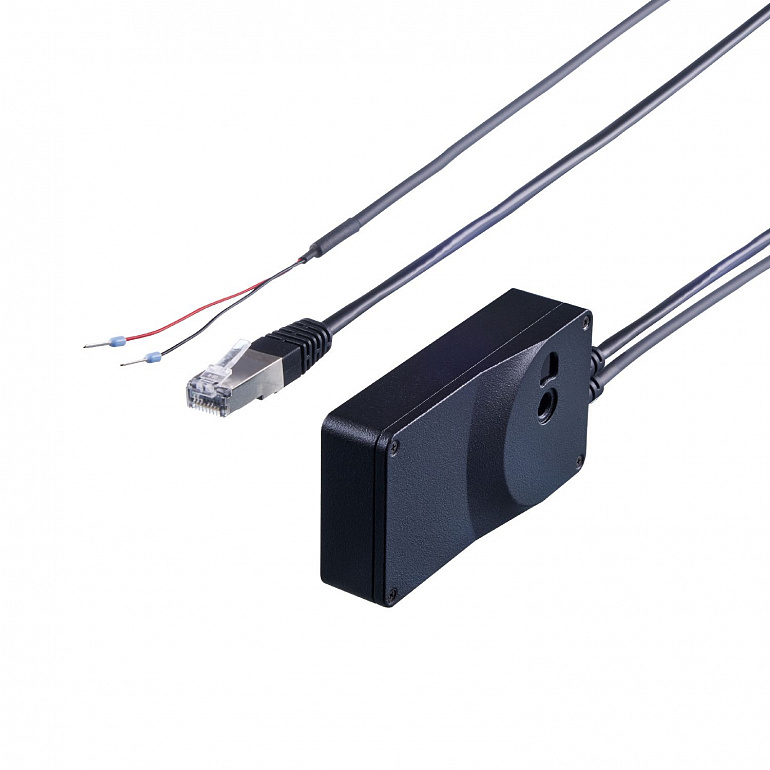

| Type of light |
Infrared light |
| Image resolution 3D |
224 x 172 |
| Angle of aperture 3D |
58 x 44 |
| Max. reading rate |
20 |
| Application |
output of 3D image data |
| Operating voltage tolerance |
-15...20 |
| Operating voltage |
24 DC |
| Current consumption |
< 170; (mean value at 24 VDC; peak current pulsed: <350) |
| Power consumption |
4 |
| Protection class |
III |
| Overvoltage category |
II |
| Type of light |
Infrared light |
| Wave length |
850 |
| Image sensor |
PMD 3D ToF-Chip |
| Integrated lighting |
yes; (infrared: 850 nm invisible radiation) |
| Operating distance |
50...3000 |
| Note on operating distance |
| object size: 200 x 200 mm | | reflectivity: 18 % |
|
| Image resolution 3D |
224 x 172 |
| Angle of aperture 3D |
58 x 44 |
| Max. reading rate |
20 |
| Measuring range |
< 30; (depending on settings, object size, and reflectivity) |
| Parameter setting options |
via PC with ifm Vision Assistant or XML-RPC |
| Communication interface |
Ethernet |
| Usage type |
Parameter setting; Data transmission |
| Number of Ethernet interfaces |
1 |
| Transmission standard |
10Base-T; 100Base-TX |
| Transmission rate |
10; 100 |
| Protocol |
TCP/IP |
| Factory settings |
| IP address: 192.168.0.69 | | subnet mask: 255.255.255.0 | | gateway IP address: 192.168.0.201 |
|
| Ambient temperature |
-10...40 |
| Note on ambient temperature |
| Housing: < 45° C | | see operating instructions |
|
| Storage temperature |
-40...85 |
| Protection |
IP 50 |
| Max. immunity to extraneous light |
8 |
| EMC |
| DIN EN IEC 61000-6-4 | radiation of interference | | DIN EN IEC 61000-6-2 | noise immunity / industrial environments |
|
| Shock resistance |
| DIN EN 60068-2-27 | 50 g / (11 ms) not repetitive | | DIN EN 60068-2-27 | 40 g / (6 ms) repetitive |
|
| Vibration resistance |
| DIN EN 60068-2-6 | 2 g / (10...150 Hz) | | DIN EN 60068-2-64 | 2.3 g RMS / (10...500 Hz) |
|
| Laser protection class |
1 |
| Notes on laser protection |
| Caution: | invisible laser radiation | | laser class: | 1 | | IEC 60825-1:2014 | | Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019. |
|
| Electrical safety |
| DIN EN IEC 61010-2-201 | electrical supply only via PELV circuits |
|
| MTTF |
59 |
| Weight |
241.1 |
| Dimensions |
80 x 43.5 x 21 |
| Material |
housing: diecast zinc; front lens Illu: PMMA |
| Pack quantity |
1 pcs. |
|

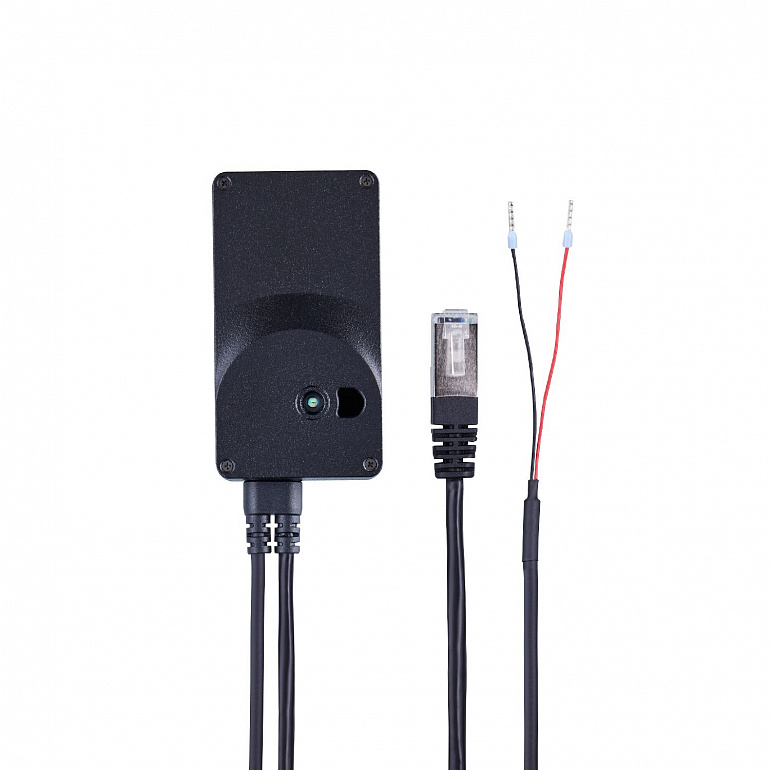

Cable: 1 m, PVC |
| RJ45_Steckverbinder |
Connector: 1 x RJ45 |
