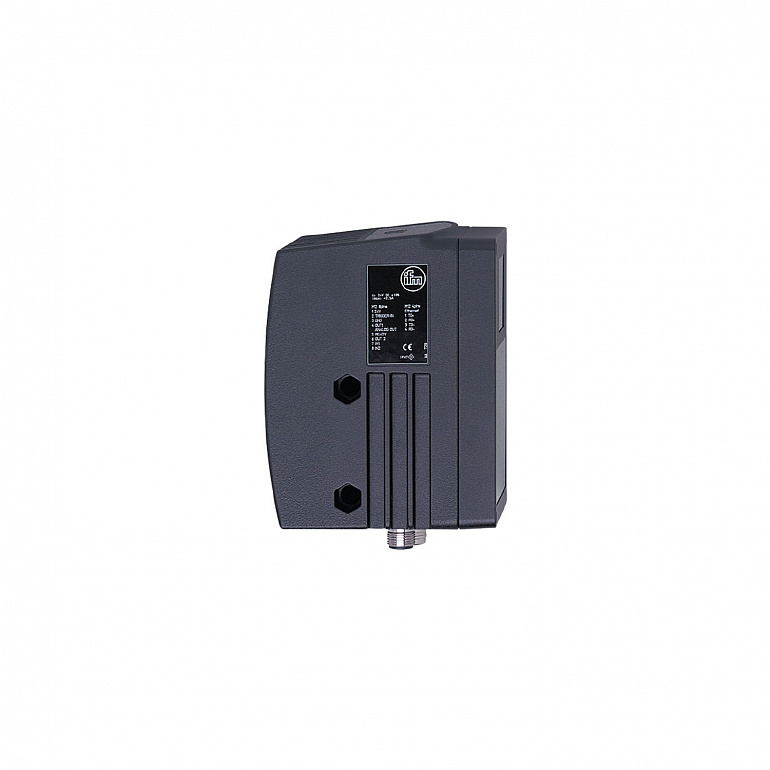

| Image resolution 3D |
64 x 48 |
| Angle of aperture 3D |
40 x 30 |
| Max. reading rate |
20 |
| Operating voltage tolerance |
10 |
| Operating voltage |
24 DC |
| Current consumption |
peak current pulsed: 3250; typical value: 960 |
| Power consumption |
16 |
| Protection class |
III |
| Image sensor |
PMD 3D ToF-Chip |
| Integrated lighting |
yes; (infrared: 850 nm invisible radiation LED class 1) |
| Number of inputs and outputs |
Number of digital inputs: 2; Number of digital outputs: 2 |
| Trigger |
24 V PNP (IEC 61131-2 Typ 1) |
| Number of digital inputs |
2 |
| Input circuit of digital inputs |
24 V PNP; (configurable; IEC 61131-2 Typ 1) |
| Total number of outputs |
2 |
| Number of digital outputs |
2; (configurable) |
| Output function |
24 V PNP |
| Max. voltage drop switching output DC |
1 |
| Max. current load per output |
100 |
| Analog current output |
4...20 |
| Max. load |
300 |
| Analog voltage output |
0...10 |
| Min. load resistance |
10000 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
yes (non-latching) |
| Overload protection |
yes |
| Image resolution 3D |
64 x 48 |
| Angle of aperture 3D |
40 x 30 |
| Max. reading rate |
20 |
| Parameter setting options |
via 2 pushbuttons and 10-segment display or via PC / notebook with operating software |
| Communication interface |
Ethernet |
| Number of Ethernet interfaces |
1 |
| Transmission standard |
10Base-T; 100Base-TX |
| Transmission rate |
10; 100 |
| Factory settings |
| IP address: 192.168.0.69 | | subnet mask: 255.255.255.0 | | gateway IP address: 192.168.0.201 | | MAC address: see type label |
|
| Ambient temperature |
-10...50 |
| Storage temperature |
-40...85 |
| Protection |
IP 67 |
| MTTF |
55 |
| Weight |
1176 |
| Dimensions |
123.5 x 75 x 95 |
| Material |
housing: diecast aluminium; front lens: PMMA; display window: PC |
| Display |
| Switching status | 4 x LED, yellow | | 4 x LED, green | | 10-segment display, 4-digit |
|
| Pack quantity |
1 pcs. |
|
Connector: 1 x M12; coding: D |
|
Connector: 1 x M12; coding: A |
