| Components |

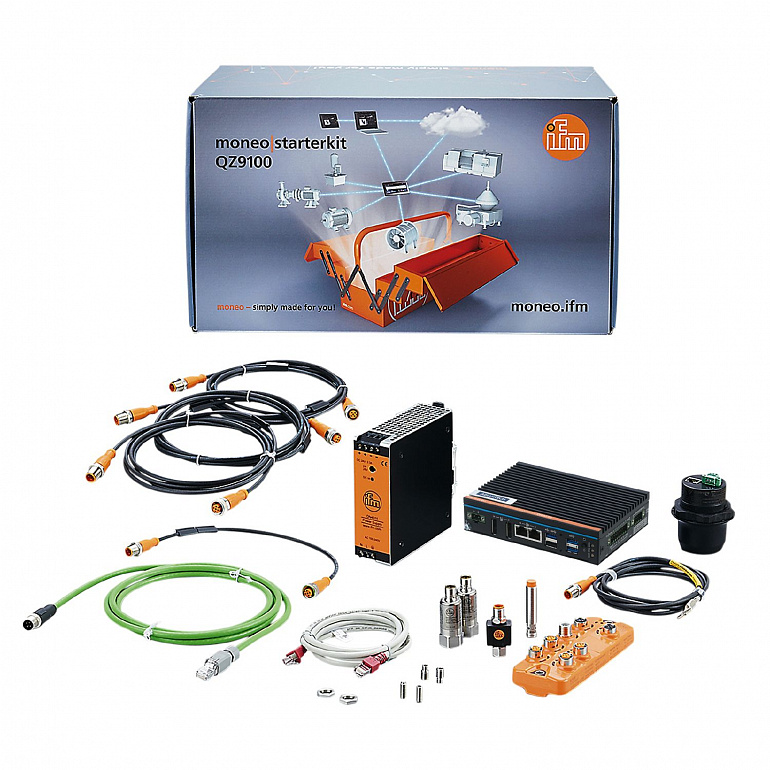

| moneo appliance; 1 x 35x 105 x150, moneo pre-installed, QHA210 | | WIFI access point; 1 x Ø 68 / L = 74, ZB0878 | | Vibration sensor; 2 x Ø 22 / L = 63,5, VVB001 | | Switched-mode power supply 24 V DC; 1 x 124 x 40 x 122,5, DN4011 | | Temperature cable sensor with bolt-on sensor; 1 x 12 x 8,7 x 51, TS2229 | | Measured signal converter for temperature sensors; 1 x 52 x 25 x 18, TP3231 | | IO-Link master with IoT interface; 1 x 152 x 59,3 x 38,4, AL1350 | | Speed monitor; 1 x M12 x 1 / L = 60, DI5028 | | Ethernet connection cable; 1 x 2 m, E12090 | | Ethernet connection cable; 1 x 2 m, EC2080 | | Connection cable; 3 x 2 m, EVC013 | | Connection cable; 1 x 0,3 m, EVC010 | | Female cordset; 1 x 2 m, EVC001 |
|
| Application |
| Condition monitoring on motors of fans, pumps and other simple machines |
|
| Content description |
| matching components incl. wiring, power supply and wifi connection | | with vibration sensors, speed sensor, temperatur sensor, IO-Link master (4-way) | | incl. hardware as the central point for data collection and processing |
|
| Compatibility |
| Can be integrated into company IT infrastructure and scaled at any time without special knowledge |
|
| Data management |
| winding temperature on the motor | | speed measurement | | effective value of vibration velocity (vRMS) | | effective value of acceleration (a-RMS) | | ratio of the maximum value to the effective value of acceleration (crest factor) | | maximum value of acceleration (a-Peak) |
|
| Number of video outputs |
2; (DisplayPort) |
| Language |
German; English; French; Italian; Spanish; Portuguese; Chinese; Japanese; Korean; Russian |
| Operating system |
Debian Linux 10 |
| Web browser |
Google Chrome; Mozilla Firefox; (supported versions: see current release notes) |
| Communication interface |
Ethernet; USB |
| Number of Ethernet interfaces |
2; (GBit) |
| Number of USB interfaces |
4; (3 x USB 3.0; 1 x USB 2.0 Type A) |
| Ambient temperature |
0...70 |
| Storage temperature |
-20...60 |
| Max. relative air humidity |
95; (40 °C non condensing) |
| Protection |
IP 40 |
| Shock resistance |
|
| Vibration resistance |
| IEC 60068-2-6 | 4 Grms / 5...500 Hz |
|
| Weight |
8670 |
| Dimensions |
35 x 105 x 150 |
| Processor |
Intel Atom E3940 Quad Core |
| TPM chip |
V 2.0 |
| BIOS |
AMI UEFI (128 Mbit) |
| Working memory |
8 GB |
| Mass storage |
256 GB SSD |
| Notes |
sold only in combination with license package QM9111 |
| Pack quantity |
1 pcs. |
