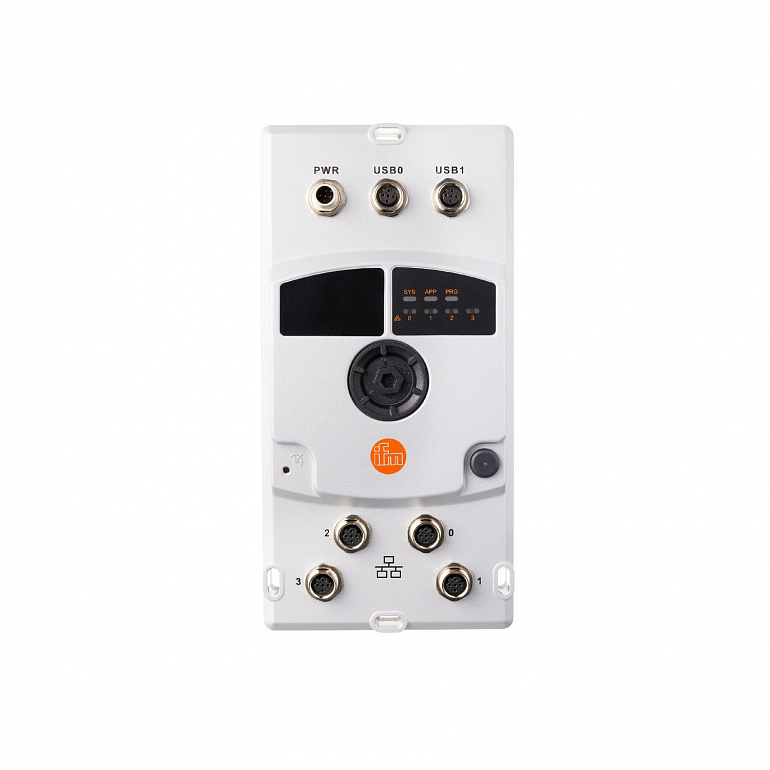

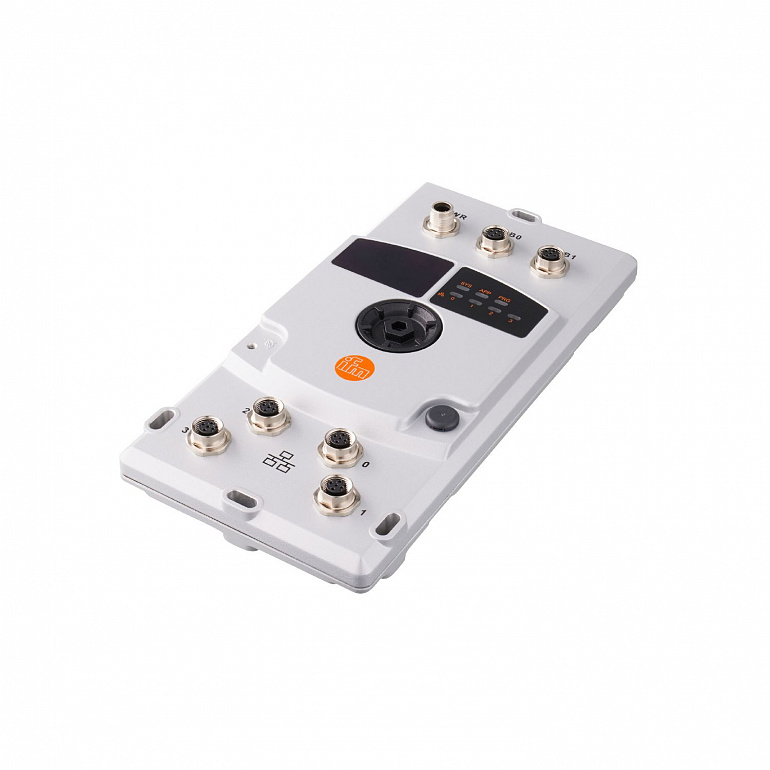

| Communication interface |
Ethernet; USB |
| Housing |
rectangular |
| Dimensions |
250 x 125 x 32.5 |
| Application |
ideally suited for operation in harsh environments to collect data from industrial environments and to improve operational efficiency, productivity and safety; to increase machine availability, ensure process quality or optimise energy consumption in industrial applications |
| Operating voltage |
8...32 DC; (to PELV) |
| Nominal voltage DC |
12 / 24 |
| Power consumption |
14; (max. power for USB devices: 1,5 A / 5 V) |
| Reverse polarity protection |
yes |
| Overvoltage category |
II |
| Parameter setting options |
moneo |
| Communication interface |
Ethernet; USB |
| Number of Ethernet interfaces |
4 |
| Number of USB interfaces |
2 |
| Transmission standard |
10Base-T; 100Base-TX |
| Transmission rate |
10 MBit/s; 100 MBit/s |
| Type of connector |
M12 |
| Protocol |
TCP/IP; TCP/IP JSON; UDP; HTTP; OPC UA; MQTT |
| Transmission rate |
< 480 MBit/s |
| Type of connector |
M12 |
| Version |
USB 2.0 |
| Note on interfaces |
| Output current limitation: 1,5 A | | Output current total: 1,5 A |
|
| Ambient temperature |
-25...55 |
| Storage temperature |
-25...85 |
| Max. relative air humidity |
90; (non condensing) |
| Max. height above sea level |
3000 |
| Protection |
IP 65; IP 67 |
| Degree of soiling |
2 |
| EMC |
| EN IEC 61000-6-2 | | | EN IEC 61000-6-8 | |
|
| Weight |
1057 |
| Housing |
rectangular |

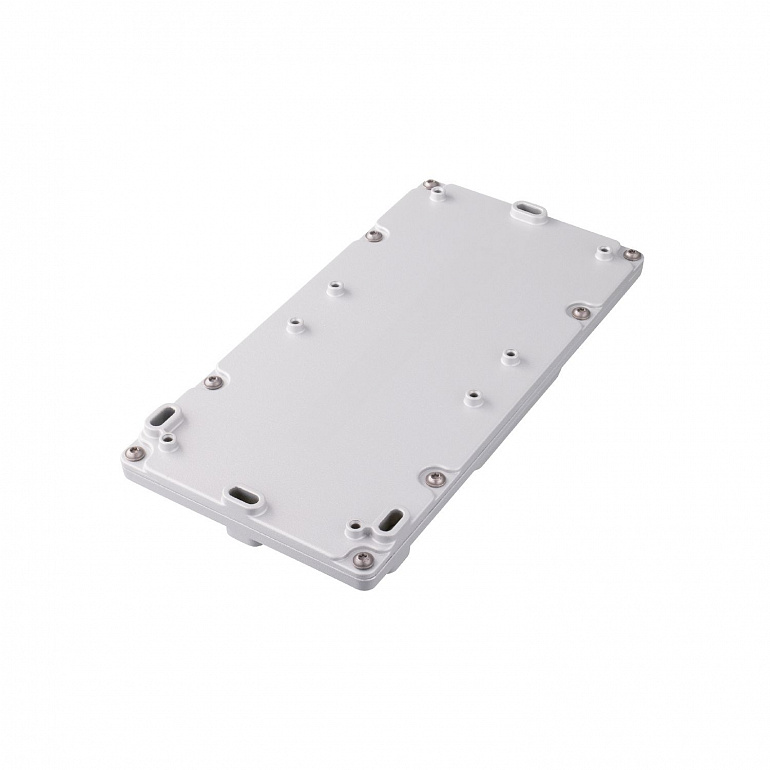

| Type of mounting |
Backplane mounting |
| Dimensions |
250 x 125 x 32.5 |
| Material |
housing: diecast aluminium powder-coated |
| Display |
| system status | 3 LED, three-color | | network status | 4 LED, green | | 4 LED, yellow |
|
| Processor |
ARM 64 Bit Quad Core 1,2 GHz |
| Working memory |
4 GByte RAM |
| Mass storage |
20 GByte Flash |
| Removable storage |
USB interface |
| Real-time clock |
yes; UTC, battery buffered |
| Remarks |
| maximum transmission rate of 500 process values per second |
|
| Notes |
an additional QCM100 cloud subscription is required to use and operate the moneo Cloud |
| Pack quantity |
1 pcs. |
|
Connector: 4 x M12; coding: D |
|
Connector: 1 x M12; coding: A |
|
Connector: 2 x M12; coding: B |
