| Communication interface |
Ethernet; USB |
| Housing |
rectangular |
| Dimensions |
140.4 x 36 x 129.5 |
| Application |

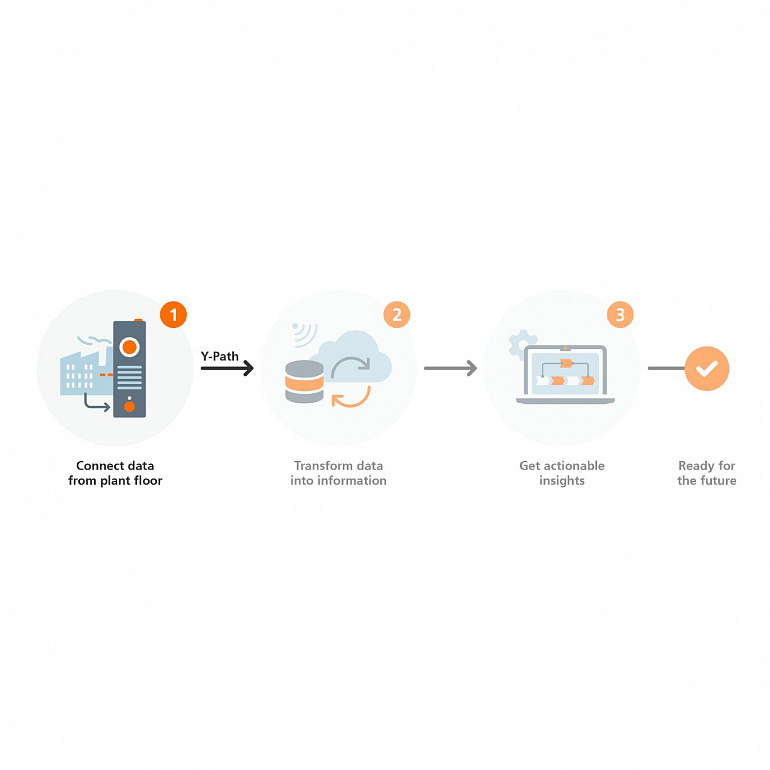

ideally suited for operation in the control cabinet or IT environment to collect data from industrial environments to improve operational efficiency, productivity and safety; to increase machine availability, ensure process quality or optimise energy consumption in industrial applications |
| Operating voltage |
18...32 DC; (PELV) |
| Nominal voltage DC |
24 |
| Power consumption |
14; (max. power for USB devices: 1,5 A / 5 V) |
| Reverse polarity protection |
yes |
| Overvoltage category |
II |
| Parameter setting options |
moneo |
| Communication interface |
Ethernet; USB |
| Number of Ethernet interfaces |
4 |
| Number of USB interfaces |
2 |
| Transmission standard |
10Base-T; 100Base-TX |
| Transmission rate |
10 MBit/s; 100 MBit/s |
| Type of connector |
RJ45 |
| Protocol |
TCP/IP; TCP/IP JSON; UDP; HTTP; OPC UA; MQTT |
| Transmission rate |
< 480 MBit/s |
| Type of connector |
type A |
| Version |
USB 2.0 |
| Note on interfaces |
| Output current limitation: 1,5 A | | Output current total: 1,5 A |
|
| Ambient temperature |
-25...55 |
| Note on ambient temperature |
| 2000 m: 55 °C | | 3000 m: 50 °C |
|
| Storage temperature |
-25...85 |
| Max. relative air humidity |
90; (non condensing) |
| Max. height above sea level |
3000 |
| Protection |
IP 20 |
| Degree of soiling |
2 |
| EMC |
|
| MTTF |
52 |
| Weight |
680 |
| Housing |
rectangular |
| Type of mounting |

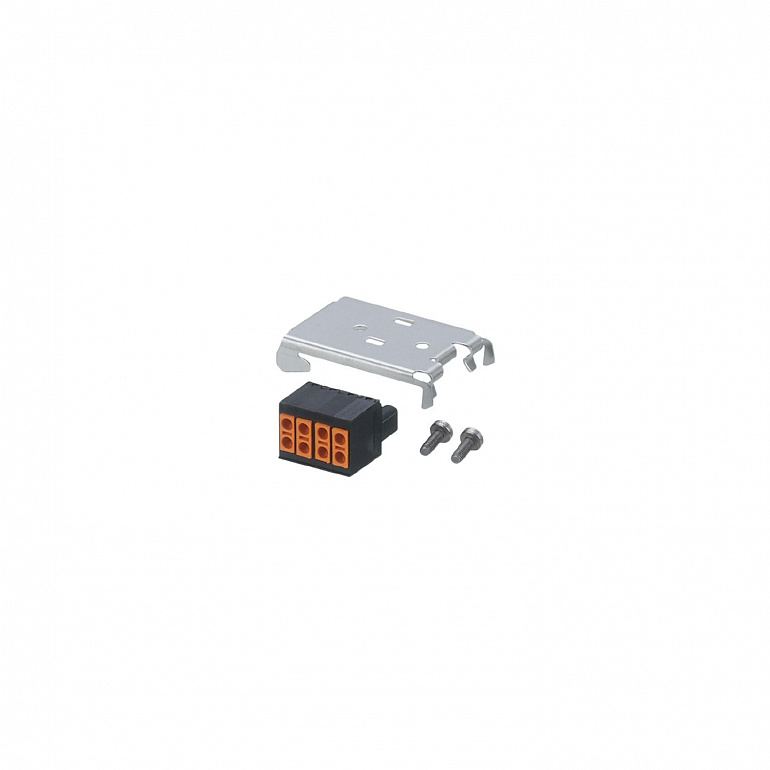

Mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions |
140.4 x 36 x 129.5 |
| Material |
housing: diecast aluminium passivated; stainless steel |
| Display |
|
| Processor |
ARM 64 Bit Quad Core 1,2 GHz |
| Working memory |
4 GByte RAM |
| Mass storage |
20 GByte Flash |
| Removable storage |
Micro SD card; SD; SDHX; SDXC; USB interface |
| Real-time clock |
yes; UTC, battery buffered |
| Remarks |
| maximum transmission rate of 500 process values per second |
|
| Notes |
an additional QCM100 cloud subscription is required to use and operate the moneo Cloud |
| Pack quantity |
1 pcs. |
|

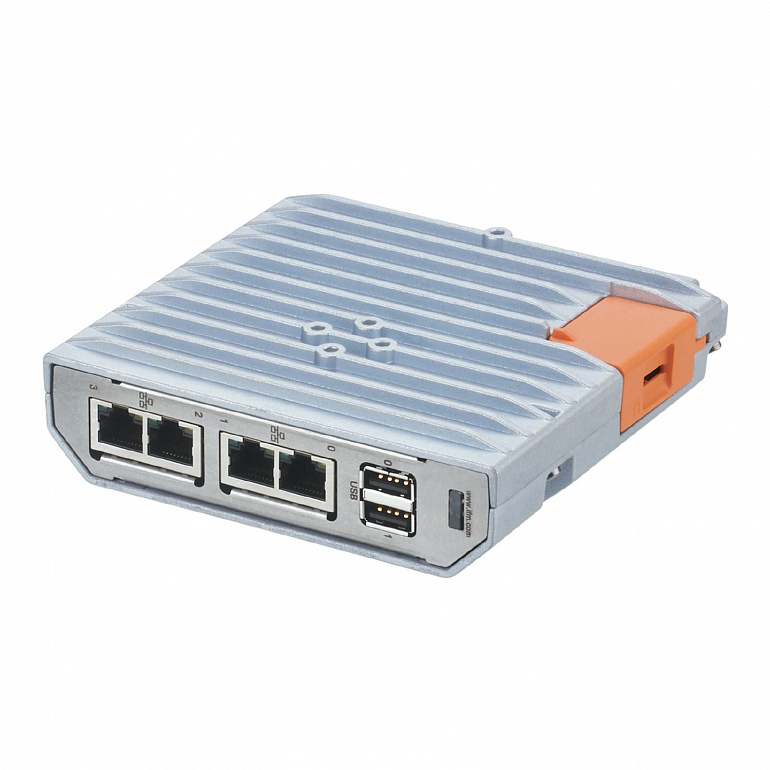

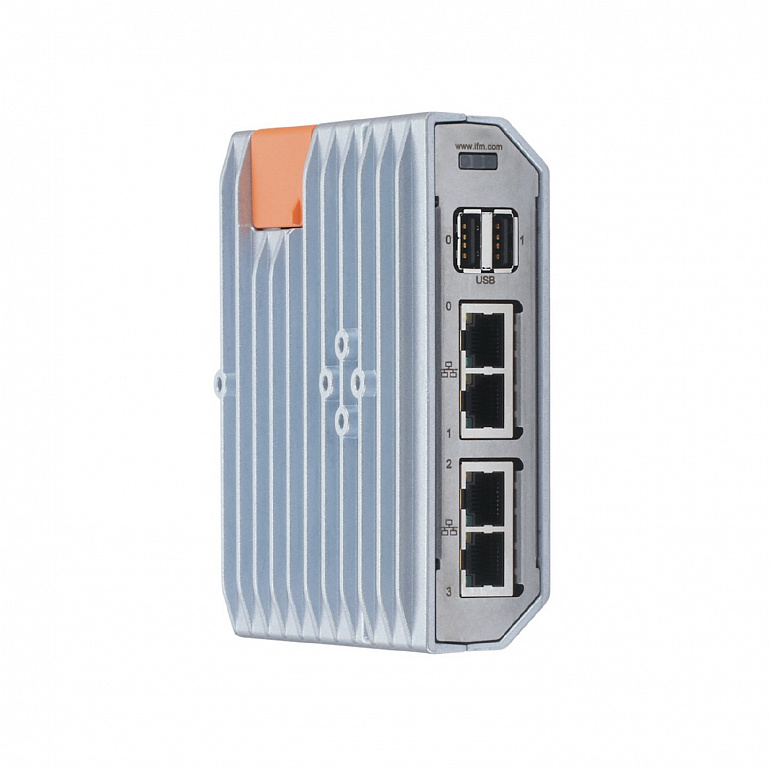

Connector: 4 x RJ45 |
|
Connector: 2 x type A |
|
Connector: 1 x Cage clamp |
