| Application |
industrial LTE router US |
| Operating temperature (active) |
-40...65 |
| Radio approval for |
Canada; USA |
| Operating voltage |
11...33 DC |
| Current consumption |
< 1200 |
| Protection class |
III |
| Reverse polarity protection |
yes |
| Communication interface |
GNSS; Mobile networks; Ethernet |
| Note on interfaces |
|
| Frequency band |
GPS; GLONASS; Galileo; Beidou |
| Transmission standard |
LTE Cat-4 |
| Frequency band |
B2, B4, B5, B12, B13, B14, B25, B26, B66 |
| Transmission rate |
10 MBit/s; 100 MBit/s |
| Protocol |
TCP/IP; UDP/IP |
| Storage temperature |
-40...65 |
| Protection |
IP66, IP67: Upper part; IP21: Connections |
| Degree of soiling |
2 |
| EMC |
| EN 301489-1 | | | EN 61000-4-2 | | | EN 61000-4-3 | | | EN 61000-4-4 | | | EN 61000-4-5 | | | EN 61000-4-6 | | | EN 55032 | |
|
| Vibration resistance |
|
| Damp heat |
|
| Radio approval |
EN 301908-1
EN 303413 |
| UL approval |
|
| Standard |
EN 62368-1 |
| Weight |
193.3 |
| Type of mounting |
screw mounting; (M50) |
| Dimensions |
Ø 68 / L = 75 |
| Material |
housing; Upper part: PBT / PC; housing; lower part: PBT |
| Remarks |
| dual antenna with MIMO support | | firewall, NAT and DHCP server integrated |
|
| Pack quantity |
1 pcs. |
|

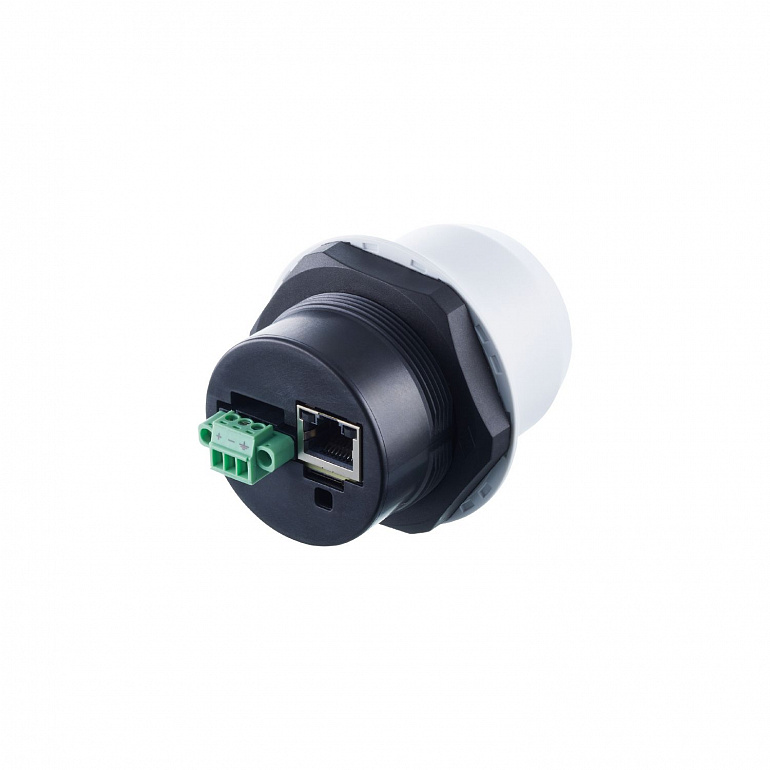

Connector: 1 x RJ45 |
|
Connector: 1 x terminal |
