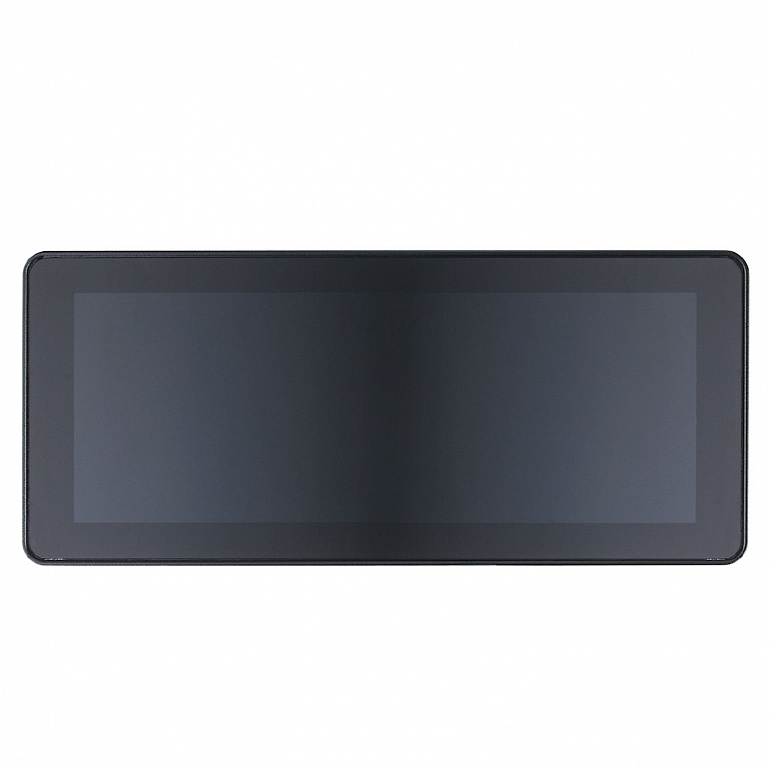

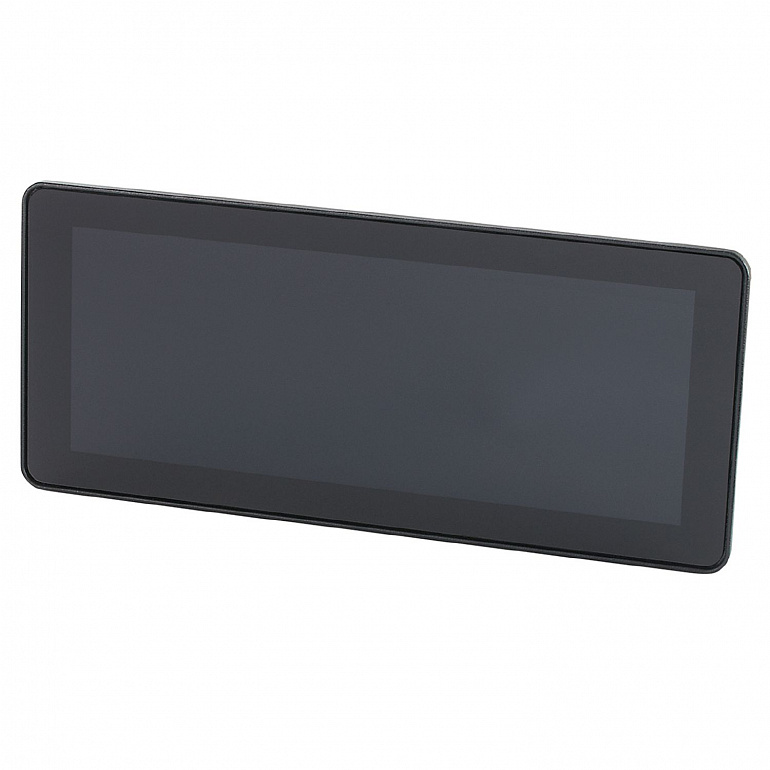

| Communication interface |
Ethernet; USB |
| Housing |
rectangular |
| Dimensions |
160.5 x 339.1 x 47.7 |
| Application |
freely programmable edgeDevice for industrial applications |
| Operating voltage |
20...32 DC |
| Nominal voltage DC |
24 |
| Power consumption |
32 |
| Reverse polarity protection |
yes |
| Parameter setting options |
CODESYS 3.5 |
| PLC function to IEC 61131-3 |
yes |
| Communication interface |
Ethernet; USB |
| Number of Ethernet interfaces |
2 |
| Number of USB interfaces |
2 |
| Transmission standard |
10Base-T; 100Base-TX |
| Transmission rate |
10 MBit/s; 100 MBit/s |
| Type of connector |
M12 |
| Protocol |
EtherNet/IP; PROFINET; EtherCAT; Modbus TCP; OPC UA; IoT (MQTT, HTTP, Cloud connectors) |
| Transmission rate |
< 480 MBit/s |
| Type of connector |
M12 |
| Version |
USB 2.0 |
| Note on interfaces |
| Output current limitation: 1,5 A | | Output current total: 1,5 A |
|
| Ambient temperature |
-30...65 |
| Note on ambient temperature |
| 2000 m: -30...65 °C | | 3000 m: -30...60 °C | | The temperature of the mainboard must not exceed 85 °C. | | for further information please see the operating instructions |
|
| Storage temperature |
-35...85 |
| Max. relative air humidity |
90; (non condensing) |
| Max. height above sea level |
3000 |
| Protection |
IP 65 |
| Degree of soiling |
2 |
| Weight |
2288.2 |
| Housing |
rectangular |
| Type of mounting |
panel/surf. |
| Dimensions |
160.5 x 339.1 x 47.7 |
| Material |
housing: diecast aluminium powder-coated; Display: glass chemically hardened and anti-reflective |
| Display |
| Status LED | LED, multi-color programmable |
|
| Display resolution |
1280 x 480 |
| Display type |
color display with touch function |
| Display size |
12.3" 8:3 |
| Display background illumination |
LED |
| Color depth |
24 Bit |
| Brightness |
> 1000 |
| Contrast ratio |
1000:1 |
| Processor |
ARM 64 Bit Quad Core 1,2 GHz |
| Working memory |
1 GByte RAM |
| Mass storage |
8 GByte Flash |
| Removable storage |
USB interface |
| Real-time clock |
yes; UTC, battery buffered |
| Accessory required |
| All male cordsets: AMP - M12, E70450 | | connection cable with open cable end: AMP, E70451 |
|
| Pack quantity |
1 pcs. |
|
Connector: 2 x M12; coding: D |
|
Connector: 2 x M12; coding: B |
|
Connector: 1 x AMP connector |
