| System |
gold-plated contacts |
| Application |

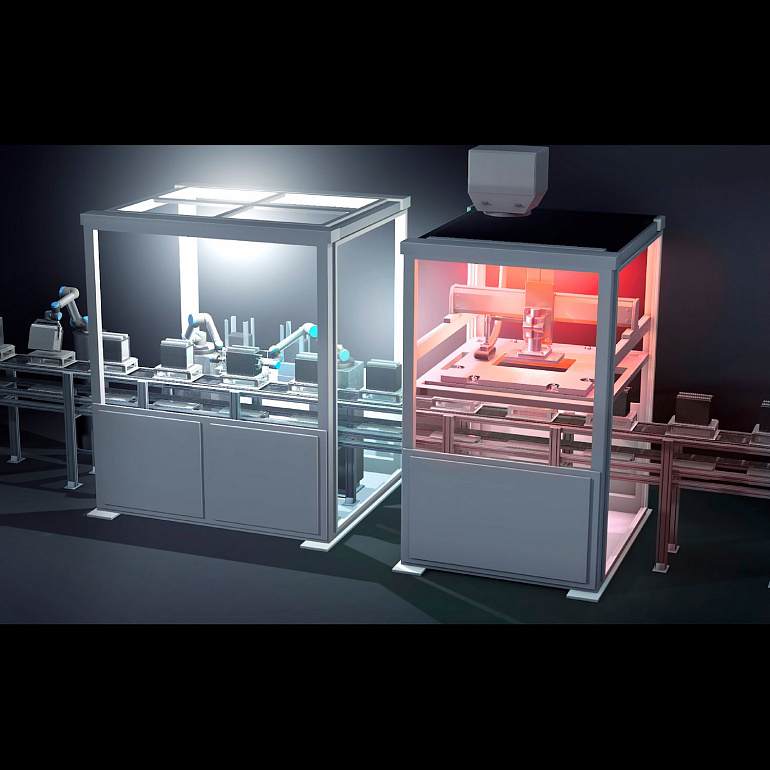

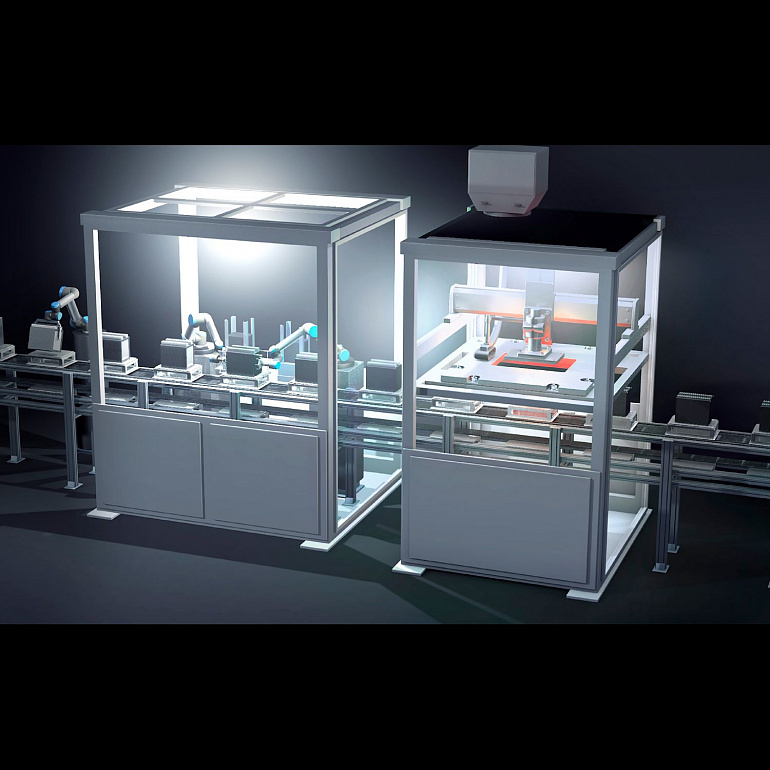

illumination and signalling of machine conditions |
| Operating voltage |
21.6...26.4 DC |
| Nominal voltage DC |
24; (to SELV/PELV) |
| Max. current consumption |
300; (red: 43; green: 43; blue: 43; white: 172) |
| Color temperature |
4000 |
| Luminous flux |
red: 40; green: 90; blue: 18; white: 450 |
| Typ. lifetime |
65000 |
| Input circuit of digital inputs |
24 V PNP |
| Ambient temperature |
-20...45 |
| Max. relative air humidity |
90 |
| Max. height above sea level |
4000 |
| Protection |
IP 68; IP 69K |
| Degree of soiling |
2 |
| Approval |
IEC 62471; IEC 62031; IEC 60598; IEC 61000-6-2 |
| Weight |
99.5 |
| Dimensions |
302 x 28 x 16 |
| Material |
housing: TPU / PA grey |
| Display |
| Illumination | LED, white | | signaling machine conditions | LED, multi-color RGB |
|
| Pack quantity |
1 pcs. |
|
Connector: 1 x M12, straight; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
