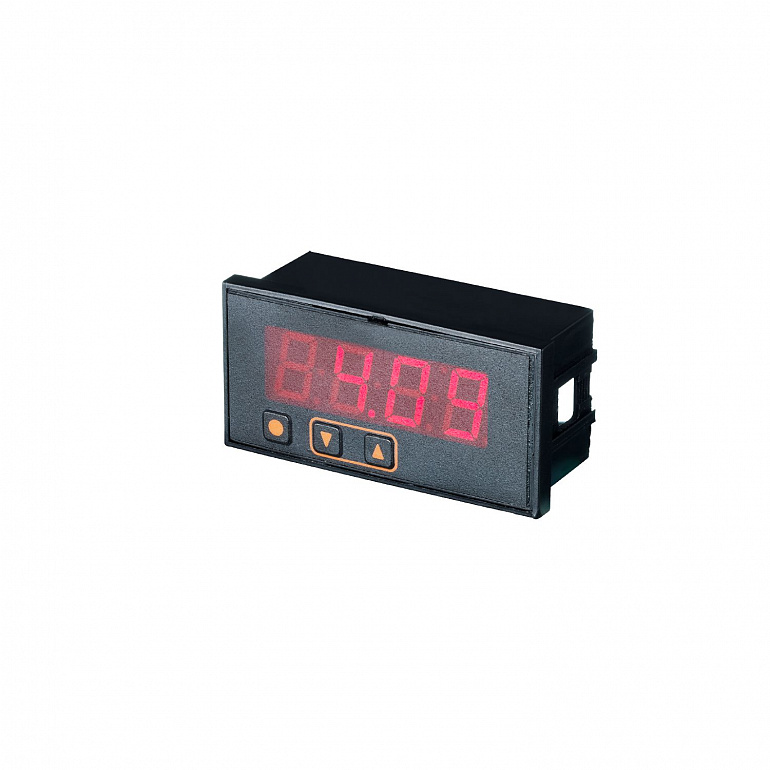

| Housing |
rectangular |
| Dimensions |
36 x 72 x 40 |
| Application |
scalable display for sensors with analog output |
| Operating voltage |
24 DC; (voltage is generated from analog signal: 4...20 mA; voltage drop of signal: 5,1 (4,7...5,2 V)) |
| Number of inputs and outputs |
Number of analog inputs: 1 |
| Number of analog inputs |
1 |
| Analog input (current) |
4...20 |
| Analog input |
| Resolution [Bit] | 12 | | Accuracy | 0,3 % Measuring error ± 1 Digit |
|
| Ambient temperature |
0...60 |
| Storage temperature |
-20...80 |
| Protection |
IP 65; (terminals: IP00) |
| Weight |
106 |
| Housing |
rectangular |
| Type of mounting |
installation in panels or panel cutouts; (panel cutout: 68 x 33 mm) |
| Dimensions |
36 x 72 x 40 |
| Material |
housing: polycarbonate; sealing: EPDM |

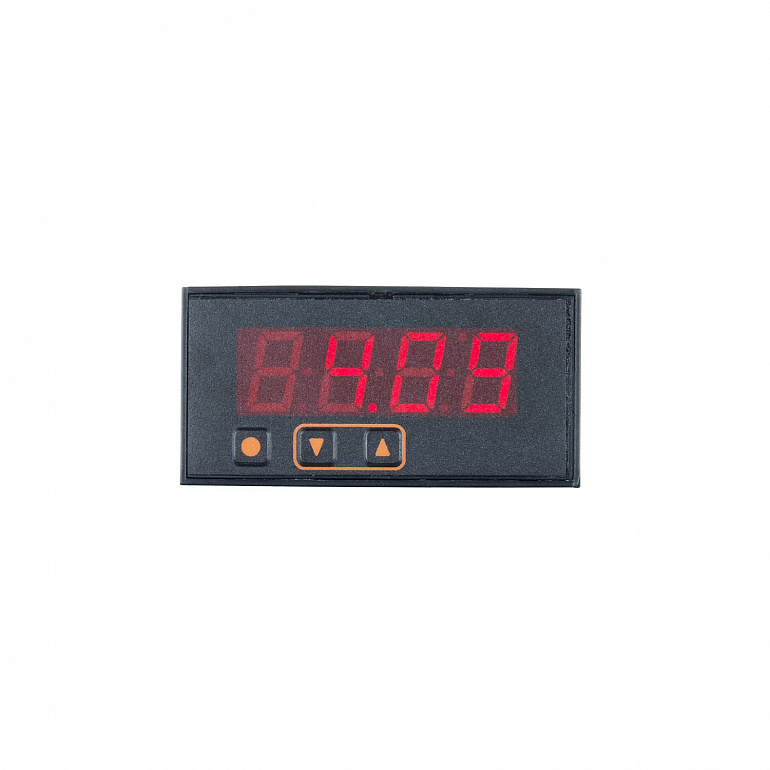

| Display |
| Function display | 7-segment LED display, red | | digit height 14 mm | | Display range -1999...9999 | | Operating elements | 3 pushbuttons |
|
| Pack quantity |
1 pcs. |

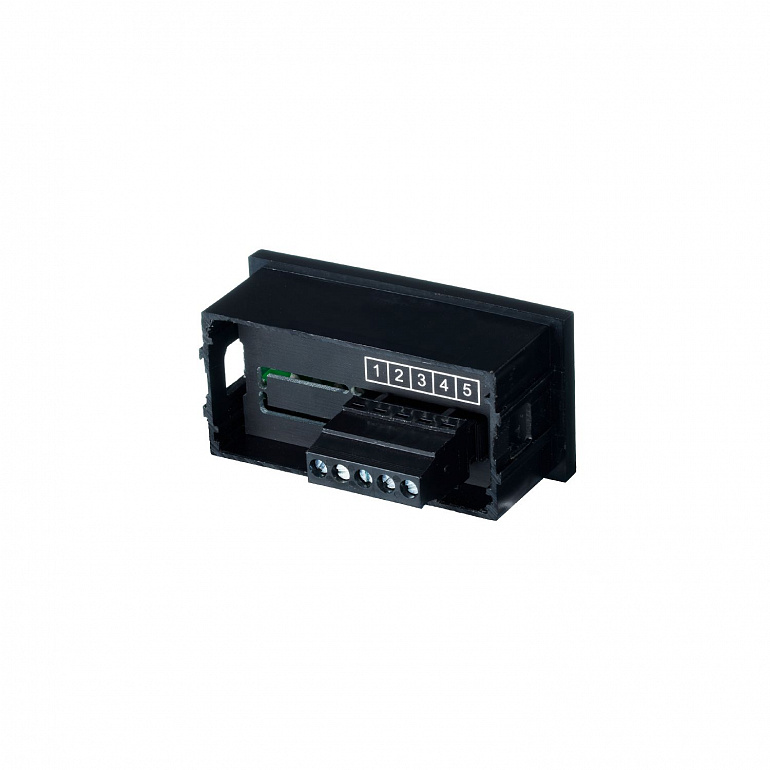

| Connection |
plug-in screw terminals: ...2.5 mm² |
