| System |
Free from silicone; gold-plated contacts |
| Free from silicone |
yes |
| Operating voltage |
< 50 AC / < 60 DC; (cULus: 30 AC / 42 DC) |
| Protection class |
III |
| Max. current load total |
3 |
| Ambient temperature |
-25...80 |
| Note on ambient temperature |
|
| Protection |
IP 65; IP 67; IP 68; IP 69K |
| UL approval |
| voltage supply | Class 2 | | File number UL | E191684 |
|
| Weight |
28.9 |
| Material |
housing: PA orange Halogen-free |
| Material nut |
stainless steel (1.4404 / 316L) |
| Sealing material |
EPDM |
| Pack quantity |
1 pcs. |
|

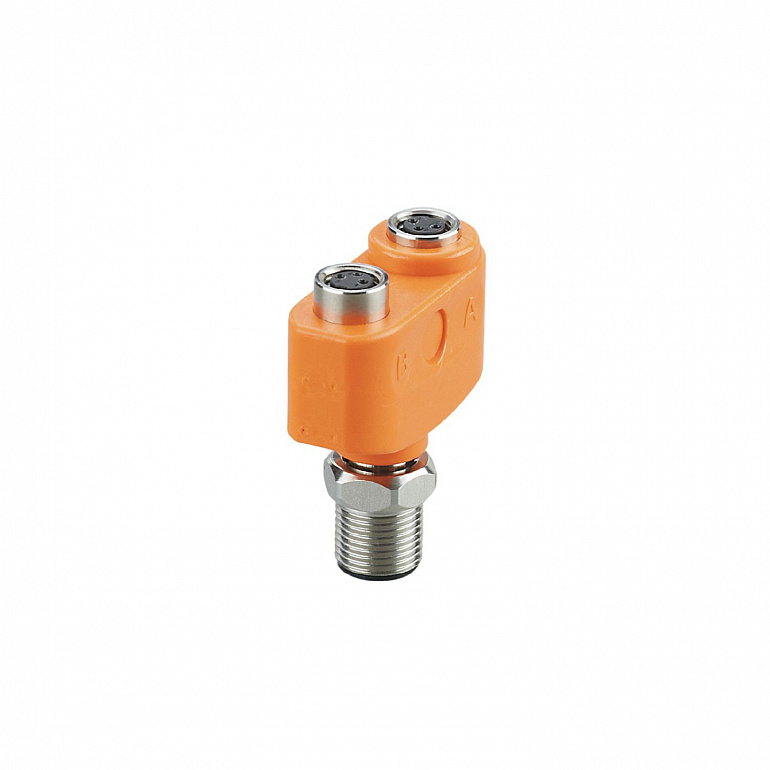

Connector: 1 x M12; coding: A; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Take into account the maximum value of the counterpart! |
