| System |
Free from silicone; Halogen-free; gold-plated contacts; Drag chain suitability |
| Free from silicone |
yes |
| Operating voltage |
10...30 DC; (cULus - Class 2 source required) |
| Protection class |
II |
| Max. current load per module/slot |
4 |
| Max. current load total |
12 |
| Electrical design |
PNP |
| Ambient temperature |
-25...80 |
| Ambient temperature (moving) |
-5...60 |
| Protection |
IP 67; IP 68 |
| Weight |
1174.5 |
| Housing |
rectangular |
| Type of mounting |
Backplane mounting |
| Dimensions |
127 x 54 x 22 |
| Material |
housing: PA |
| Material nut |
brass, nickel-plated |

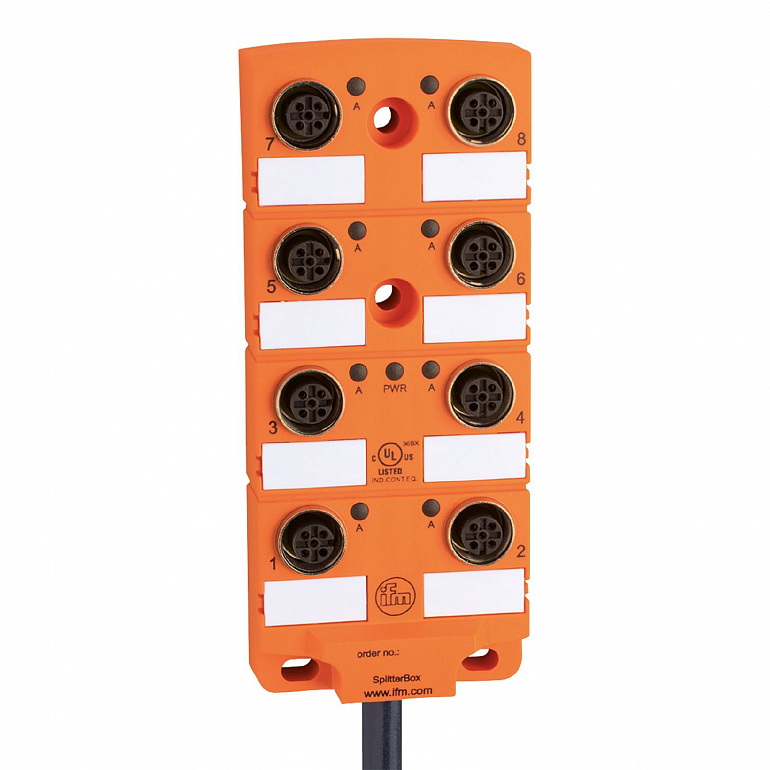

| Number of ports splitter box |
8 |
| Connector type |
M12 |
| Drag chain suitability |
| Bending radius for flexible applications | min. 10 x cable diameter | | Bending radius for fixed installation | min. 5 x cable diameter | | Travel speed | max. 3 m/s at 5 m horizontal travel length and max. acceleration of 5 m/s² | | Torsional strain | ± 30 °/m | | Bending cycles | > 2 Mio. |
|
| Display |
| Switching status | 8 x LED, yellow | | Power | 1 x LED, green |
|
| Items supplied |
| Protective caps: 2 | | labels: 8 |
|
| Pack quantity |
1 pcs. |
|
Cable: 10 m, PUR, Halogen-free, black, Ø 8.2 mm; 8 x 0.34 mm² (43 x Ø 0.1 mm ) + 3 x 0.75 mm² (95 x Ø 0.1 mm ) |
| Connection |
Connector: 8 x M12; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm |
