| Design |
for BasicRelay, utilizing all connections to a BasicRelay, CR0421 |

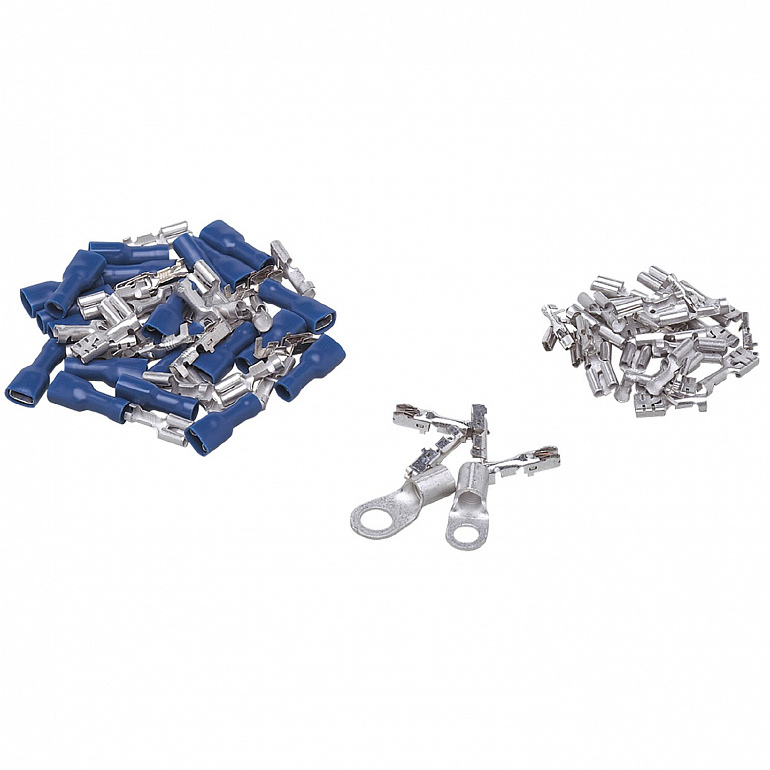

| Items supplied |
| blade female terminals for relay contacts: 10 x (2,8 x 0,8 mm (0,5...1,0 mm²)), DIN 46340 | | blade female terminals for relay contacts: 20 x (6,3 x 0,8 mm (0,5...1,0 mm²)), DIN 46340 | | blade female terminals for relay contacts: 20 x (6,3 x 0,8 mm (1,0...2,5 mm²)), DIN 46340 | | blade female terminals for power distributors: 20 x (6,3 x 0,8 mm (1,0...2,5 mm²)), fully insulated DIN 46245 | | Contacts for automotive fuse holders: 6 x (0,5...1,5 mm²) | | Contacts for automotive fuse holders: 4 x (2,0...3,0 mm²) | | ring terminals for power supply: 1 x M6 (10 mm²), DIN 46234 | | ring terminals for power supply: 1 x M8 (10 mm²), DIN 46234 | | Nuts: 1 x M6, galvanized ISO 4032 | | Nuts: 1 x M8, galvanized ISO 4032 |
|
