| System |
Free from silicone; gold-plated contacts |
| Free from silicone |
yes |
| Operating voltage |
< 60 AC/DC |
| Protection class |
II |
| Max. current load total |
4; (...40 °C) |
| Ambient temperature |
-25...90 |
| Storage temperature |
-25...55 |
| Storage humidity |
10...100 |
| Other climatic conditions for storage according to stated class |
|
| Protection |
IP 65; IP 67; IP 68; IP 69K |
| Weight |
34.4 |
| Molded-body material |
PA 6.6 |
| Material nut |
brass, nickel-plated |
| Sealing material |
FKM |
| Pack quantity |
1 pcs. |
|
screw terminals: 0.25...1 mm²; Cable sheath: Ø 3.5...6 mm; AWG 23...17 |
| Connection |

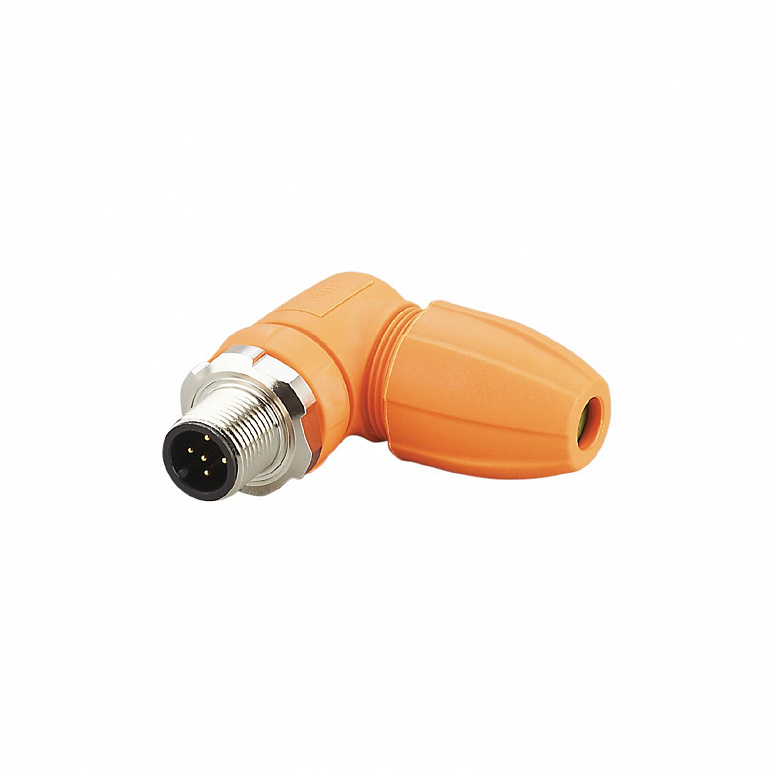

Connector: 1 x M12, angled; coding: A; Moulded body: PA 6.6, orange; Locking: brass, nickel-plated; sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm; Take into account the maximum value of the counterpart! |
