Характеристики
| Number of contacts (plug) | 4 |
| Coding (male connection) | T |
| Connection | M12 Connector; screw terminals: 0,75...1,5 mm²; Cable sheath: Ø 8...10 mm |

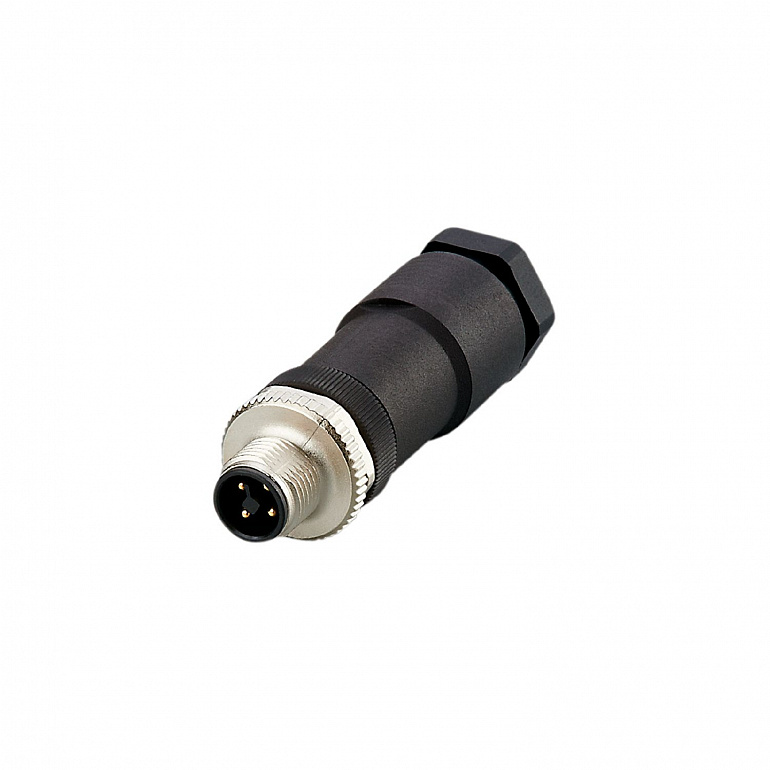

| Product designation | Wirable plug |
Все характеристики
| System | Free from silicone; gold-plated contacts |
| Design | Powerkabel, T-coded |
| Free from silicone | yes |
| Operating voltage | < 60 DC |
| Max. current load total | 12; (when using conductors with 1.5 mm²) |
| Ambient temperature | -40...85 |
| Protection | IP 67 |
| Weight | 27.216 |
| Dimensions | 20 x 20 x 65.5 |
| Molded-body material | PA |
| Material nut | diecast zinc |
| Sealing material | NBR |
| Pack quantity | 1 pcs. |
| screw terminals: 0.75...1.5 mm²; Cable sheath: Ø 8...10 mm | |
| Connection | Connector: 1 x M12, straight; coding: T; Moulded body: PA; Locking: diecast zinc; sealing: NBR; Contacts: gold-plated; Tightening torque: 0.4 Nm |
Приемущества
| Gold-plated contacts for reliable electrical connections |
| High protection rating for the requirements of harsh industrial environments |
| Wide operating temperature range |
| Safe cable connection with screw terminals |
