Характеристики
| Connection | 7/8" Connector; screw terminals: ...1,5 mm²; Cable sheath: Ø 7...13 mm |

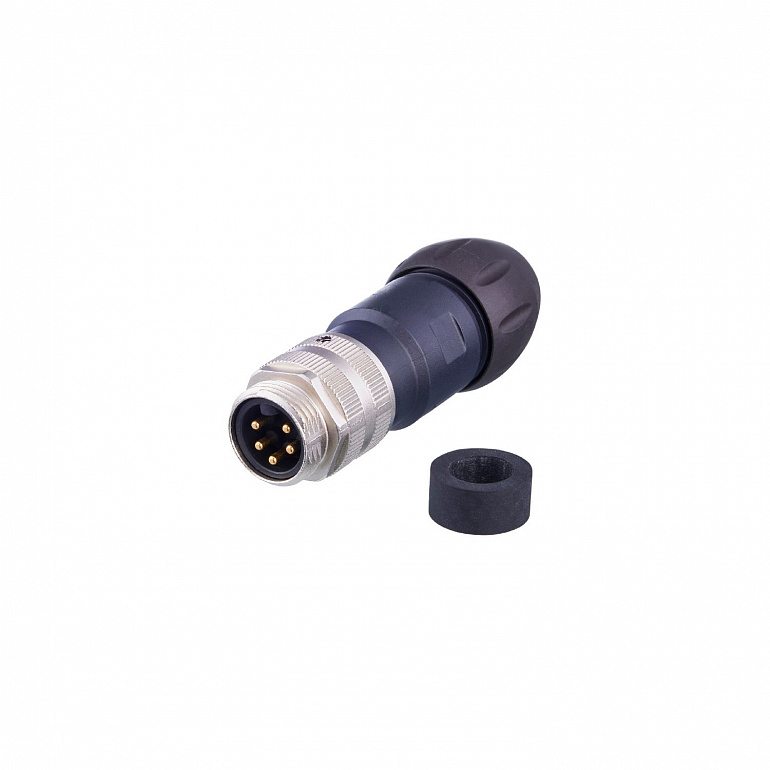

| Product designation | Wirable plug |
Все характеристики
| System | gold-plated contacts | |
| Operating voltage | < 400 AC/DC | |
| Protection class | II | |
| Max. current load total | 9 | |
| Ambient temperature | -25...85 | |
| Protection | IP 67 | |
| Weight | 54.7 | |
| Molded-body material | PA; PUR | |
| Material nut | diecast zinc, nickel-plated | |
| Sealing material | NBR | |
| Remarks |
|
|
| Pack quantity | 1 pcs. | |
| screw terminals: ...1.5 mm²; Cable sheath: Ø 7...13 mm; AWG 16 | ||
| Connection | Connector: 1 x 7/8", straight; Moulded body: PA; PUR; Locking: diecast zinc, nickel-plated; sealing: NBR; Contacts: gold-plated |
Приемущества
| Large cable cross-section for reducing the voltage drop and transferring higher currents |
| Resistant to oils and coolants |
