Характеристики
| Number of contacts (plug) | 3 |
| Coding (male connection) | A |
| Connection | M8 Connector; insulation displacement technology: 0,14...0,38 mm²; (Ø 1,0...1,6 mm); Cable sheath: Ø 3...5 mm |

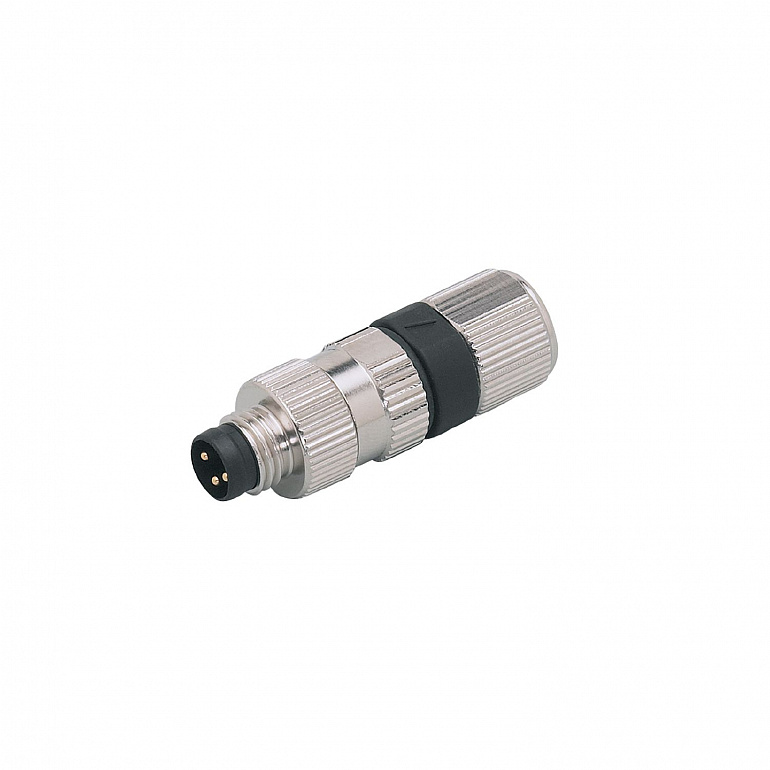

| Product designation | Wirable plug |
Все характеристики
| System | gold-plated contacts |
| Operating voltage | < 50 AC / < 75 DC |
| Protection class | III |
| Max. current load total | 4 |
| Ambient temperature | -25...90 |
| Protection | IP 68 |
| Weight | 14.8 |
| Material | Core insulation: PVC / TPE |
| Molded-body material | PA |
| Material nut | brass, nickel-plated |
| Pack quantity | 1 pcs. |
| insulation displacement technology: 0.14...0.38 mm²; Core insulation: PVC / TPE; (Ø 1.0...1.6 mm); Cable sheath: Ø 3...5 mm | |
| Connection | Connector: 1 x M8, straight; coding: A; Moulded body: PA; Locking: brass, nickel-plated; Contacts: gold-plated |
Приемущества
| Gold-plated contacts for reliable electrical connections |
| High protection rating for the requirements of harsh industrial environments |
| Wide operating temperature range |
| Easy cable connection via insulation displacement technology |
| Robust metal version |
