Характеристики
| Number of contacts (plug) | 4 |
| Coding (male connection) | A |
| Connection | M12 Connector; insulation displacement technology: 0,34...0,75 mm²; (Ø ...2,5 mm); Cable sheath: Ø 4...7,5 mm |

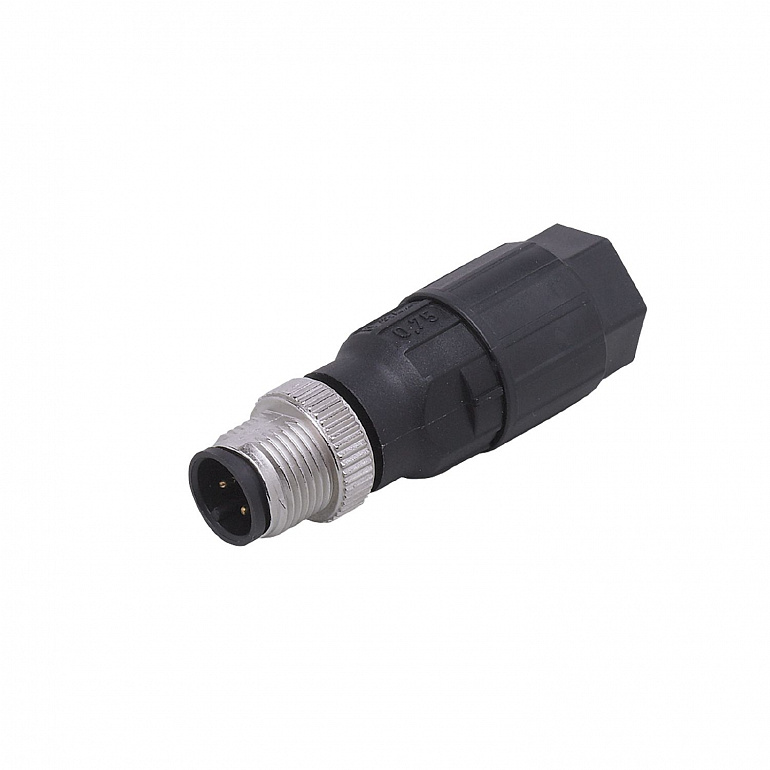

| Product designation | Wirable plug |
Все характеристики
| Operating voltage | < 250 AC/DC |
| Max. current load total | 4 |
| Ambient temperature | -25...60 |
| Protection | IP 67 |
| Weight | 15.4 |
| Dimensions | 18 x 18 x 55 |
| Molded-body material | PA 6.6 |
| Material nut | zinc, nickel-plated |
| Pack quantity | 1 pcs. |
| insulation displacement technology: 0.34...0.75 mm²; Core insulation: PVC / PE; (Ø ...2.5 mm); Cable sheath: Ø 4...7.5 mm | |
| Connection | Connector: 1 x M12, straight; coding: A; Moulded body: PA 6.6; Locking: zinc, nickel-plated |
Приемущества
| For safe electrical connections |
| High protection rating for the requirements of harsh industrial environments |
| Easy cable connection via insulation displacement technology |
