Характеристики
| Number of contacts (plug) | 3 |
| Coding (male connection) | A |
| Connection | M8 Connector; screw terminals: 0,14...0,5 mm²; Cable sheath: Ø 3,5...5 mm |

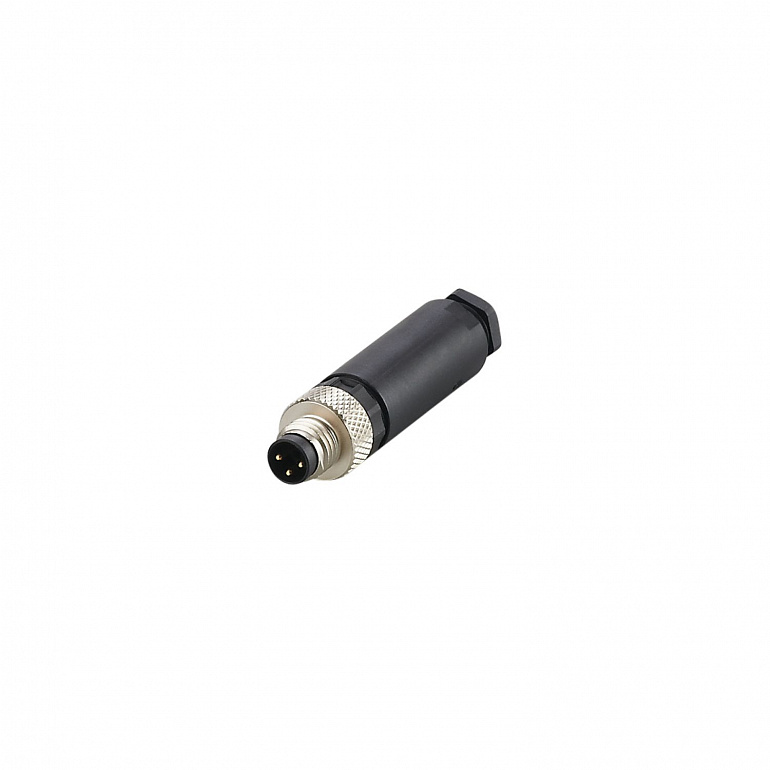

| Product designation | Wirable plug |
Все характеристики
| System | gold-plated contacts |
| Operating voltage | < 60 DC |
| Max. current load total | 4 |
| Electrical design | PNP |
| Ambient temperature | -25...85 |
| Protection | IP 67 |
| Weight | 10.7 |
| Dimensions | 12 x 12 x 50 |
| Molded-body material | PA |
| Material nut | brass, nickel-plated |
| Pack quantity | 1 pcs. |
| screw terminals: 0.14...0.5 mm²; Cable sheath: Ø 3.5...5 mm | |
| Connection | Connector: 1 x M8, straight; coding: A; Moulded body: PA; Locking: brass, nickel-plated; Contacts: gold-plated |
Приемущества
| Gold-plated contacts for reliable electrical connections |
| Safe cable connection with screw terminals |
| High protection rating for the requirements of harsh industrial environments |
| Wide operating temperature range |
