| Connection | M8 Connector; insulation displacement technology: 0,14...0,34 mm²; (Ø 1,0...1,6 mm); Cable sheath: Ø 2,5...5,1 mm |

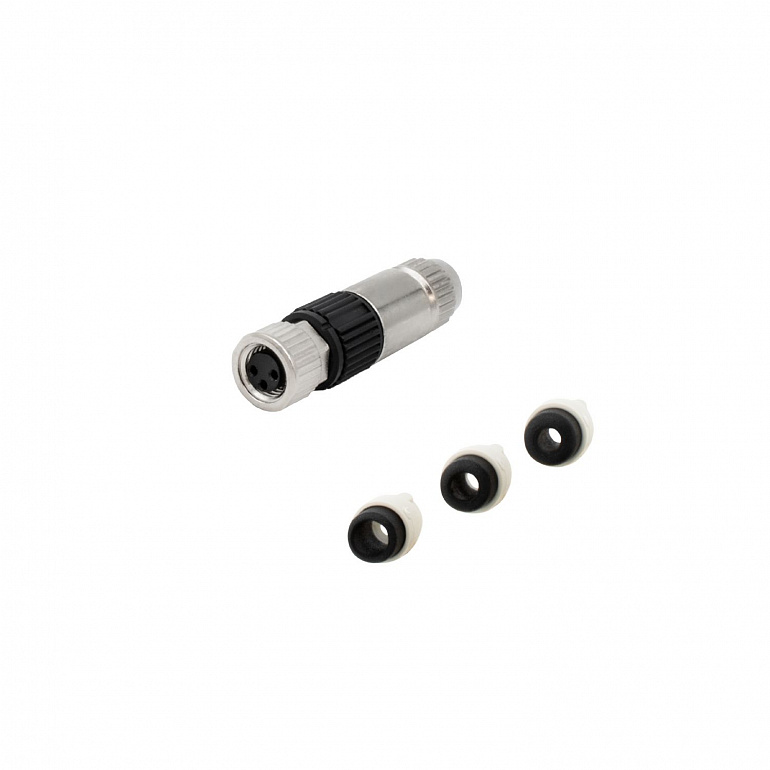

| Product designation | Female wirable connectors |
| Coding (female connection) | A |
| Number of contacts (socket) | 3 |
Все характеристики
| System | gold-plated contacts | |
| Operating voltage | < 32 AC/DC | |
| Protection class | III | |
| Max. current load total | 4 | |
| Ambient temperature | -25...85 | |
| Protection | IP 67 | |
| Weight | 15 | |
| Material | PA | |
| Molded-body material | PA | |
| Material nut | diecast zinc | |
| Items supplied |
|
|
| Pack quantity | 1 pcs. | |
| insulation displacement technology: 0.14...0.34 mm²; Core insulation: PVC/PP/TPE; (Ø 1.0...1.6 mm); Cable sheath: Ø 2.5...5.1 mm | ||
| Connection | Connector: 1 x M8, straight; coding: A; Moulded body: PA; Locking: diecast zinc; Contacts: gold-plated |
Приемущества
| Gold-plated contacts for reliable electrical connections |
| High protection rating for the requirements of harsh industrial environments |
| Wide operating temperature range |
| Easy cable connection via insulation displacement technology |
