Характеристики
| Connection | 7/8" Connector; terminals: ...1,5 mm²; Cable sheath: Ø 5...13 mm |

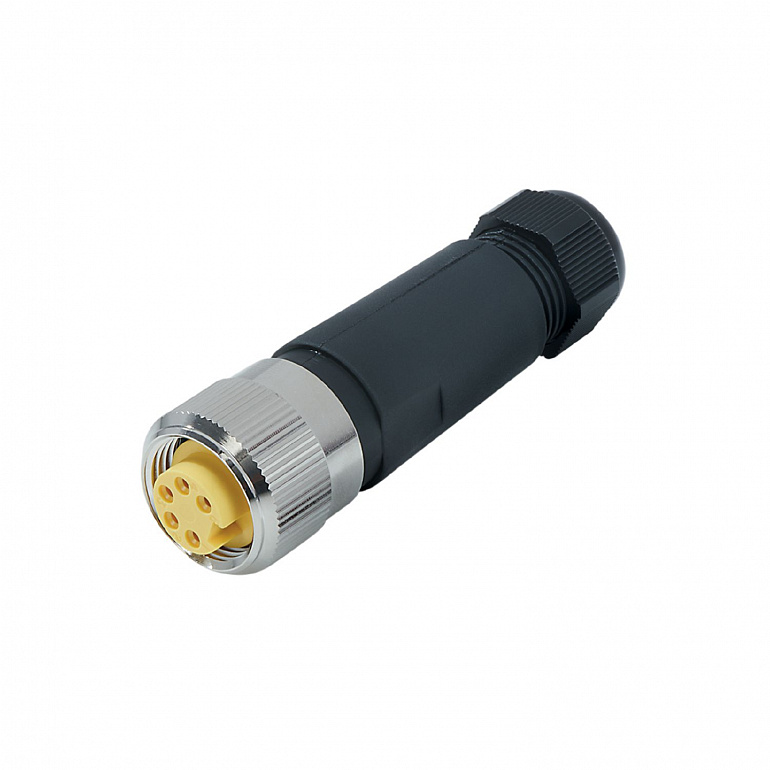

| Product designation | Female wirable connectors |
| Coding (female connection) | A |
| Number of contacts (socket) | 5 |
Все характеристики
| Operating voltage | < 600 AC | |
| Max. current load total | 9 | |
| Ambient temperature | -40...90 | |
| Protection | IP 67 | |
| Weight | 45.359 | |
| Dimensions | 27 x 27 x 83 | |
| Molded-body material | PA 6.6 | |
| Material nut | aluminum, black anodized | |
| Remarks |
|
|
| Pack quantity | 1 pcs. | |
| terminals: ...1.5 mm²; Cable sheath: Ø 5...13 mm | ||
| Connection | Connector: 1 x 7/8", straight; coding: A; Moulded body: PA 6.6; Locking: aluminum, black anodized |
Приемущества
| Gold-plated contacts for reliable electrical connections |
| High protection rating for the requirements of harsh industrial environments |
| Wide operating temperature range |
| Safe cable connection with screw terminals |
| Large operating voltage range |
