| Connection | 7/8" Connector; terminals: ...1,5 mm²; Cable sheath: Ø 8...10 mm |

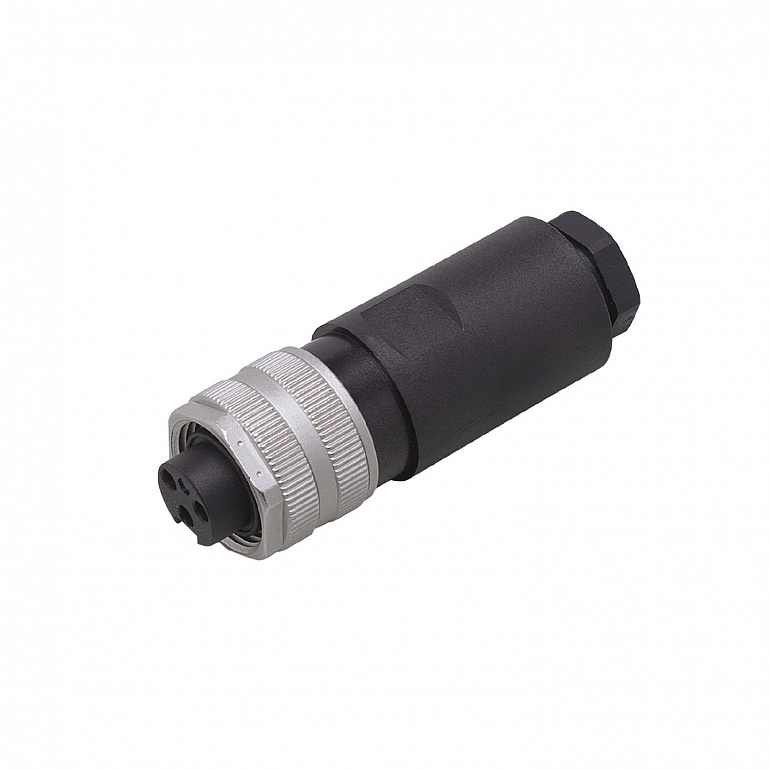

| Product designation | Female wirable connectors |
Все характеристики
| Operating voltage | < 300 AC/DC |
| Max. current load total | 12 |
| Ambient temperature | -25...85 |
| Protection | IP 67 |
| Weight | 54.2 |
| Dimensions | 27 x 27 x 83 |
| Molded-body material | PBT |
| Material nut | diecast zinc |
| Pack quantity | 1 pcs. |
| terminals: ...1.5 mm²; Cable sheath: Ø 8...10 mm | |
| Connection | Connector: 1 x 7/8", straight; Moulded body: PBT; Locking: diecast zinc |
Приемущества
| Gold-plated contacts for reliable electrical connections |
| High protection rating for the requirements of harsh industrial environments |
| Wide operating temperature range |
| Safe cable connection with screw terminals |
