| Connection | Rd24 Connector; terminals: ...2,5 mm²; Cable sheath: Ø 10...12 mm |

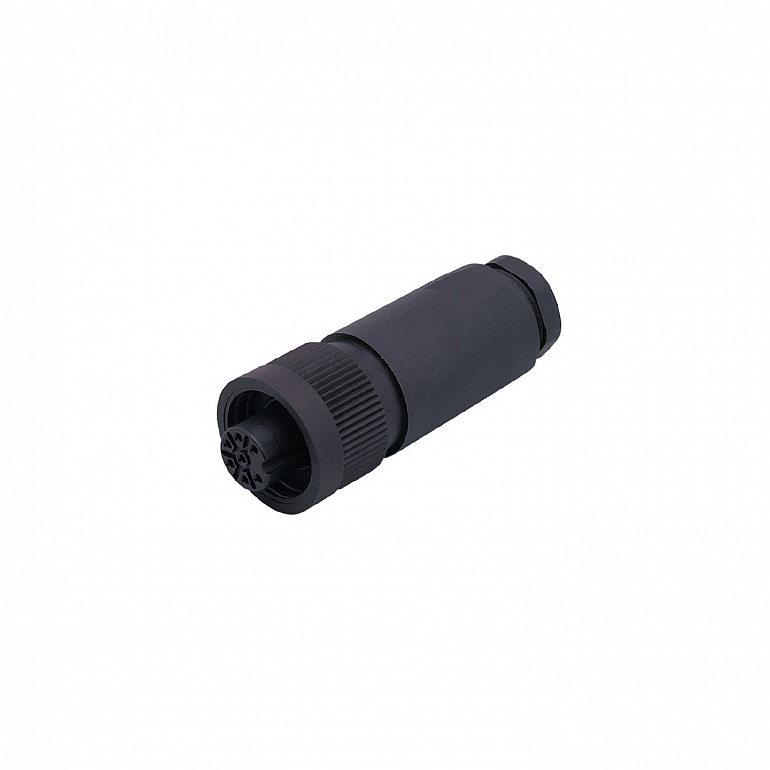

| Product designation | Female wirable connectors |
| Coding (female connection) | A |
| Number of contacts (socket) | 7 |
Все характеристики
| System | gold-plated contacts |
| Operating voltage | < 45 AC / < 70 DC |
| Ambient temperature | -40...100 |
| Protection | IP 67 |
| Weight | 49.4 |
| Dimensions | 29 x 29 x 71 |
| Molded-body material | PBT |
| Material nut | PBT |
| Pack quantity | 1 pcs. |
| terminals: ...2.5 mm²; Cable sheath: Ø 10...12 mm | |
| Connection | Connector: 1 x Rd24, straight; coding: A; Moulded body: PBT; Locking: PBT; Contacts: gold-plated |
Приемущества
| Gold-plated contacts for reliable electrical connections |
| High protection rating for the requirements of harsh industrial environments |
| Wide operating temperature range |
| Safe cable connection with screw terminals |
