Характеристики
| Connection | M18 Connector; soldering: ...0,25 mm²; Cable sheath: Ø 6...8 mm |

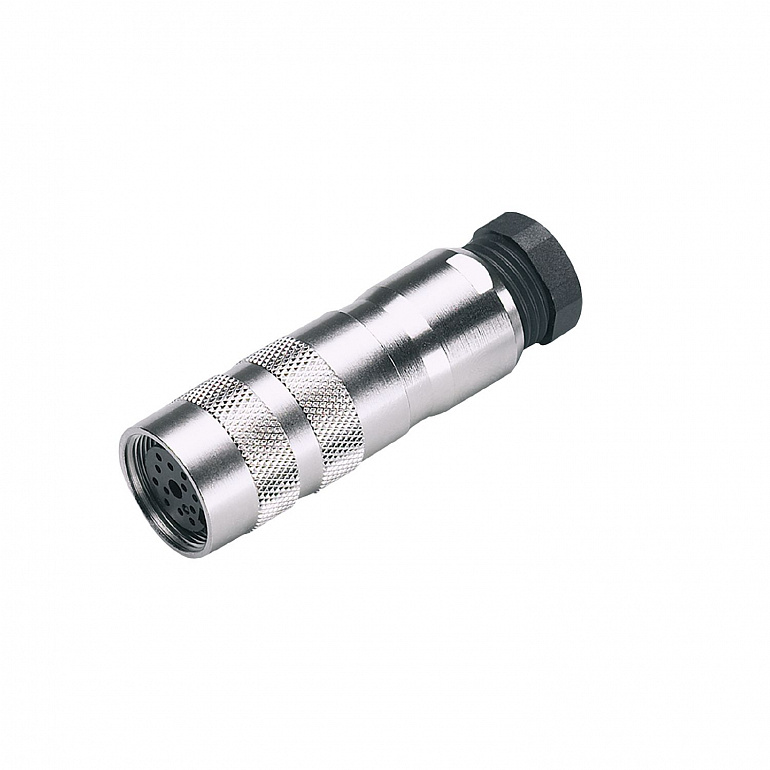

| Product designation | Female wirable connectors |
| Number of contacts (socket) | 12 |
Все характеристики
| Operating voltage | 4.5...30 DC |
| Ambient temperature | -40...85 |
| Protection | IP 67 |
| Weight | 55.3 |
| Dimensions | 18 x 18 x 60 |
| Molded-body material | brass, nickel-plated |
| Material nut | brass, nickel-plated |
| Pack quantity | 1 pcs. |
| soldering: ...0.25 mm²; Cable sheath: Ø 6...8 mm | |
| Connection | Connector: 1 x M18, straight; Moulded body: brass, nickel-plated; Locking: brass, nickel-plated |
Приемущества
| For incremental encoders with 12-pole M18 connector |
| High protection rating for the requirements of harsh industrial environments |
| Wide operating temperature range |
| Safe cable connection due to soldering |
| Robust metal version |
