| Connection | M23 Connector; soldering: ...1 mm² |

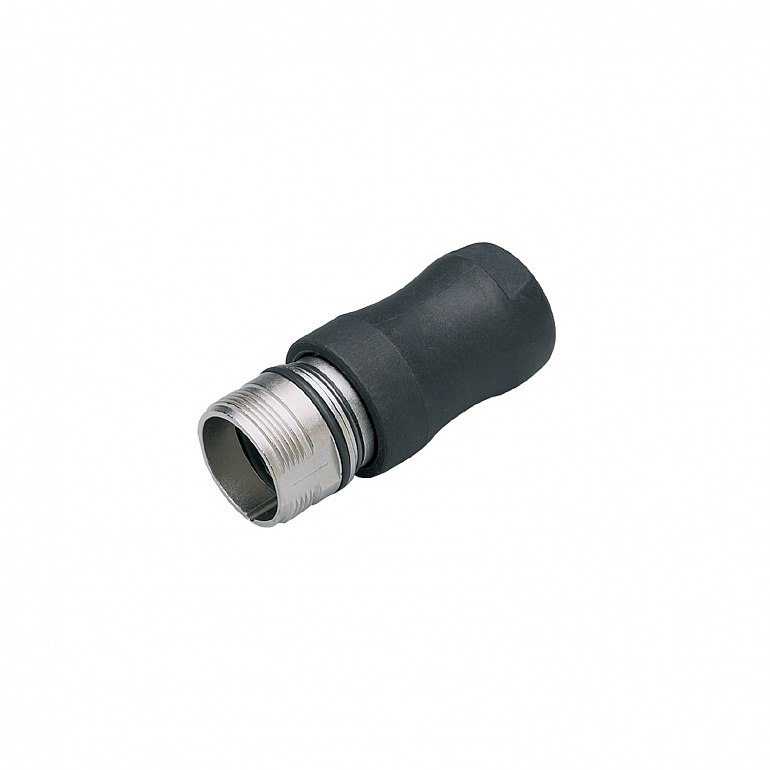

| Product designation | Female wirable connectors |
| Number of contacts (socket) | 12 |
Все характеристики
| Operating voltage | 4.5...30 DC |
| Ambient temperature | -40...125 |
| Protection | IP 67 |
| Weight | 45 |
| Dimensions | 28 x 28 x 53 |
| Molded-body material | brass / PA 6.6, plastic coated |
| Pack quantity | 1 pcs. |
| soldering: ...1 mm² | |
| Connection | Connector: 1 x M23, straight; Moulded body: brass / PA 6.6, plastic coated, black |
Приемущества
| For incremental encoders with 12-pole M23 connector |
| High protection rating for the requirements of harsh industrial environments |
| Wide operating temperature range |
| Safe cable connection due to soldering |
