| Connection | M12 Connector; insulation displacement technology: 0,14...0,34 mm²; (Ø 1,0...1,55 mm); Cable sheath: Ø 4...5 mm |

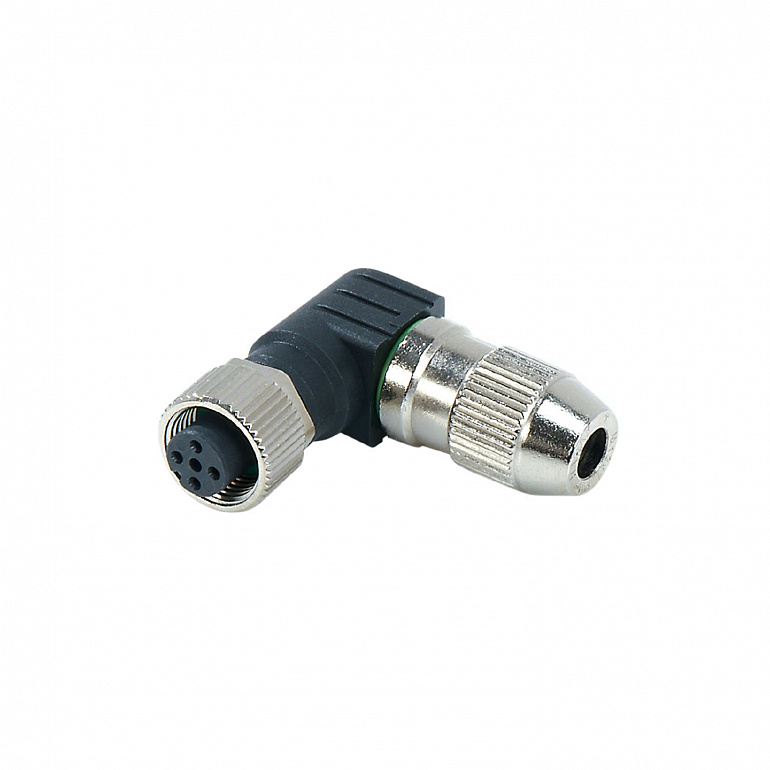

| Product designation | Female wirable connectors |
| Coding (female connection) | A |
| Number of contacts (socket) | 4 |
Все характеристики
| Operating voltage | < 250 DC |
| Ambient temperature | -25...85 |
| Protection | IP 68 |
| Weight | 22.68 |
| Dimensions | 36.5 x 15 x 38.5 |
| Molded-body material | PA 6.6 |
| Material nut | brass, nickel-plated |
| Pack quantity | 1 pcs. |
| insulation displacement technology: 0.14...0.34 mm²; Core insulation: PVC / PETP; (Ø 1.0...1.55 mm); Cable sheath: Ø 4...5 mm | |
| Connection | Connector: 1 x M12, angled; coding: A; Moulded body: PA 6.6; Locking: brass, nickel-plated |
Приемущества
| Angled type for use where space is restricted |
| Wide operating temperature range |
| Gold-plated contacts for reliable electrical connections |
| High protection rating for the requirements of harsh industrial environments |
| Easy cable connection via insulation displacement technology |
