Характеристики
| Connection | M12 Connector; screw terminals: ...0,75 mm²; Cable sheath: Ø 6...8 mm |

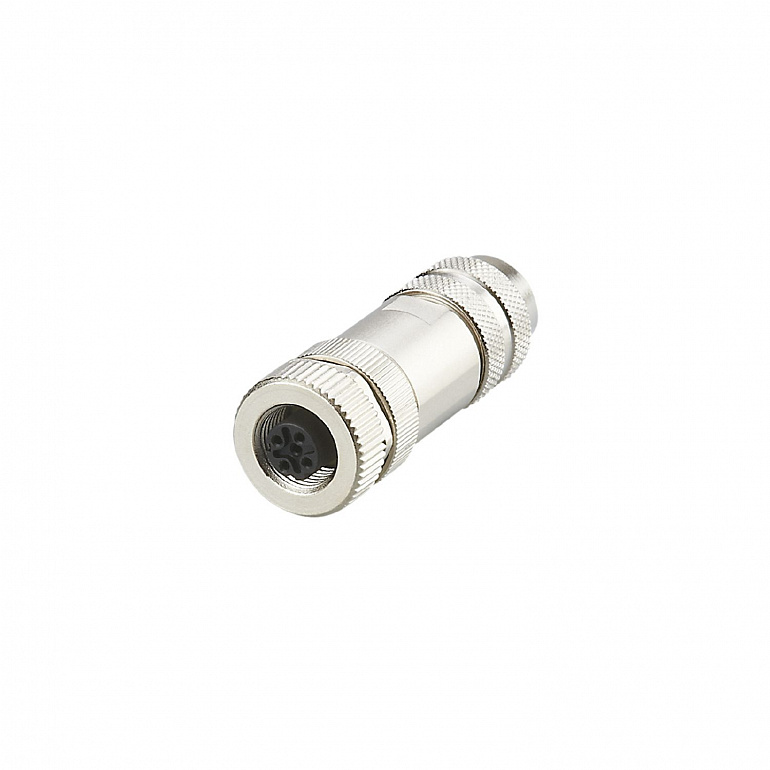

| Product designation | Female wirable connectors |
| Coding (female connection) | D |
| Number of contacts (socket) | 4 |
Все характеристики
| System | Free from silicone; gold-plated contacts |
| Design | Ethernet cable, D-coded |
| Free from silicone | yes |
| Operating voltage | < 45 AC / < 70 DC |
| Max. current load total | 4; (...40 °C) |
| Ambient temperature | -40...85 |
| Protection | IP 67 |
| Weight | 46.7 |
| Dimensions | 20 x 20 x 58 |
| Molded-body material | diecast zinc, nickel-plated |
| Material nut | diecast zinc, nickel-plated |
| Pack quantity | 1 pcs. |
| screw terminals: ...0.75 mm²; Cable sheath: Ø 6...8 mm | |
| Connection | Connector: 1 x M12, straight; coding: D; Moulded body: diecast zinc, nickel-plated; Locking: diecast zinc, nickel-plated; Contacts: gold-plated; Shielded connection cable: shieldable |
Приемущества
| Gold-plated contacts for reliable electrical connections |
| High protection rating for the requirements of harsh industrial environments |
| Wide operating temperature range |
| Safe cable connection with screw terminals |
| Good electromagnetic compatibility thanks to placeable cable shield |
