Характеристики
| Connection | 1/2" Connector; terminals: ...0,75 mm²; Cable sheath: Ø 4...6 mm |

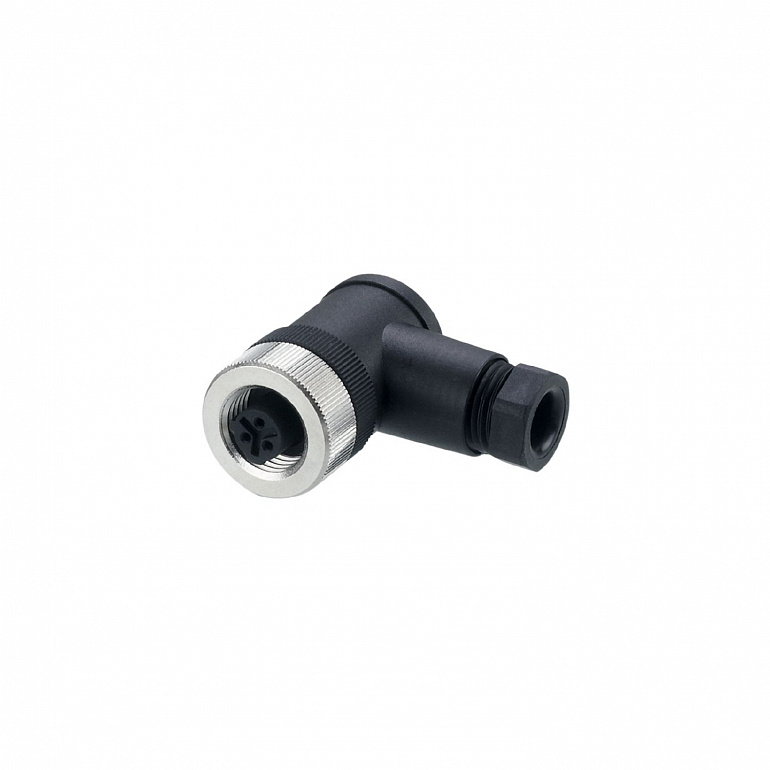

| Product designation | Female wirable connectors |
| Coding (female connection) | C |
| Number of contacts (socket) | 3 |
Все характеристики
| System | Free from silicone; gold-plated contacts |
| Free from silicone | yes |
| Operating voltage | < 250 AC |
| Max. current load total | 4; (...40 °C) |
| Ambient temperature | -25...85 |
| Protection | IP 67 |
| Weight | 24.8 |
| Dimensions | 35 x 20 x 30 |
| Molded-body material | PA |
| Material nut | brass, nickel-plated |
| Pack quantity | 1 pcs. |
| terminals: ...0.75 mm²; Cable sheath: Ø 4...6 mm | |
| Connection | Connector: 1 x 1/2", angled; coding: C; Moulded body: PA; Locking: brass, nickel-plated; Contacts: gold-plated |
Приемущества
| Angled type for use where space is restricted |
| Wide operating temperature range |
| Gold-plated contacts for reliable electrical connections |
| High protection rating for the requirements of harsh industrial environments |
| Safe cable connection with screw terminals |
