Характеристики
| Connection | M23 Connector; soldering: ...1 mm²; Cable sheath: Ø 10...14 mm |

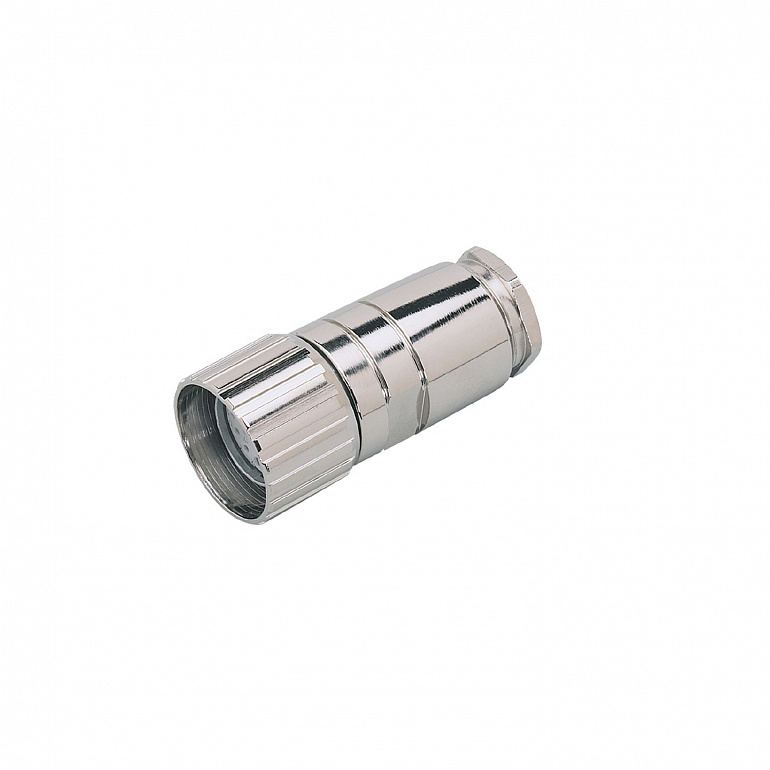

| Product designation | Female wirable connectors |
| Number of contacts (socket) | 19 |
Все характеристики
| Operating voltage | 10...30 DC |
| Max. current load total | 7.5 |
| Ambient temperature | -25...90 |
| Protection | IP 65 |
| Weight | 82.4 |
| Dimensions | 26 x 26 x 49 |
| Molded-body material | brass, nickel-plated |
| Material nut | brass, nickel-plated |
| Pack quantity | 1 pcs. |
| soldering: ...1 mm²; Cable sheath: Ø 10...14 mm | |
| Connection | Connector: 1 x M23, straight; Moulded body: brass, nickel-plated; Locking: brass, nickel-plated |
Приемущества
| For wiring blocks with M23 connector |
| Gold-plated contacts for reliable electrical connections |
| Robust design for use in harsh industrial environments |
| Wide operating temperature range |
| Safe cable connection due to soldering |
