Характеристики
| Connection | M12 Connector; screw terminals: ...0,75 mm²; Cable sheath: Ø 4...6 mm |
| Product designation | Female wirable connectors |
| Coding (female connection) | B |
| Number of contacts (socket) | 4 |
Все характеристики
| Operating voltage | < 250 AC/DC |
| Max. current load total | 4 |
| Ambient temperature | -40...85 |
| Protection | IP 67 |
| Weight | 15.2 |
| Dimensions | 36 x 20 x 30 |
| Molded-body material | PA |
| Material nut | PA |
| Pack quantity | 1 pcs. |
| screw terminals: ...0.75 mm²; Cable sheath: Ø 4...6 mm; AWG 18 | |

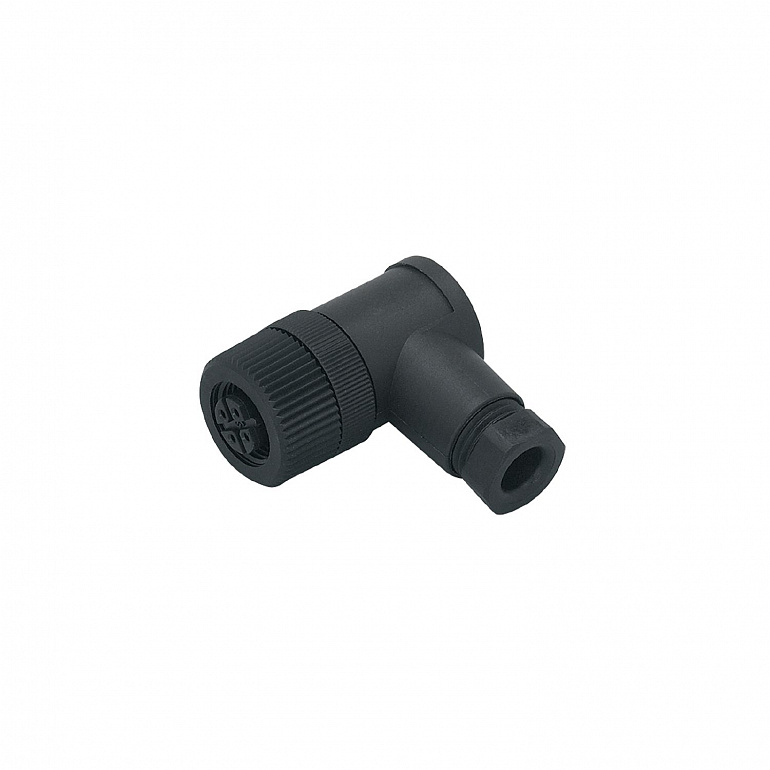

| Connection | Connector: 1 x M12, angled; coding: B; Moulded body: PA; Locking: PA; Contacts: white bronze coated |
Приемущества
| Angled type for use where space is restricted |
| Wide operating temperature range |
| Gold-plated contacts for reliable electrical connections |
| High protection rating for the requirements of harsh industrial environments |
| Safe cable connection with screw terminals |
