| Application |
connection to certified intrinsically safe circuits |
| Ambient temperature |
-20...80 |
| Protection |
IP 65 |
| Approval |
BVS 05 ATEX E106 |
| ATEX marking |
II 1G Ex ia IIC T6 Ga |
|
II 1D Ex ia IIIC T85°C Da |
| Weight |
41.2 |
| Dimensions |
43 x 25 x 36 |
| Material |
PBT |
| Molded-body material |
PBT |
| Material nut |
PA |
| Remarks |
| Ta according to table "Total power of the current ciruits" in the corresponding operating instructions (safety-related part ATEX) | | Several intrinsically safe circuits may be connected to the sockets. | | The sum of the voltages of one or more intrinsically safe circuits must not exceed the following value: | | Utotal max = 60 V (peak value) |
|
| Pack quantity |
1 pcs. |
|
terminals: ...0.75 mm²; Cable sheath: Ø 6...8 mm |
| Connection |

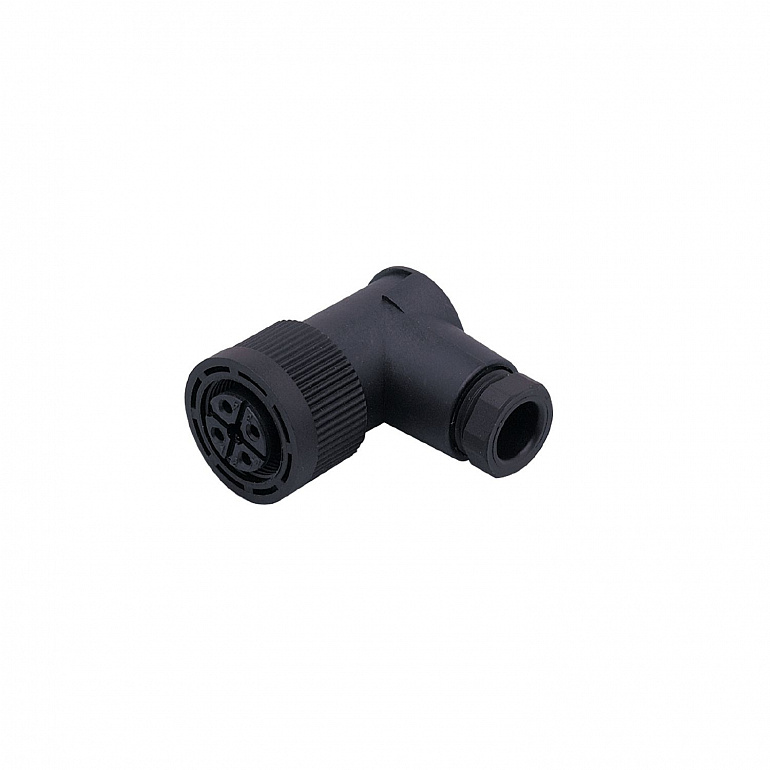

Connector: 1 x M18, angled; coding: A; Moulded body: PBT; Locking: PA |
