| System |
Free from silicone; Halogen-free; gold-plated contacts; Drag chain suitability |
| Free from silicone |
yes |
| Operating voltage |
< 50 AC / < 60 DC |
| Protection class |
III |
| Max. current load total |
3 |
| Ambient temperature |
-40...90 |
| Note on ambient temperature |
|
| Ambient temperature (moving) |
-25...90 |
| Note on ambient temperature (moving) |
|
| Protection |
IP 65; IP 67; IP 68; IP 69K |
| Vibration resistance |
| EN 60068-2-6 Fc | 20 g (10...3000 Hz) / -20 °C / 50 °C | | 50 sweep cycles per frequency; 1 octave per minute in 3 axes |
|
| Shock resistance |
| EN 60068-2-27 Ea | 100 g 11 ms half-sine; 6 shocks each in every direction along the three coordinate axes / -40 °C / 85 °C |
|
| Continuous shock resistance |
| EN 60068-2-29 Eb | 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes / -20 °C / 50 °C |
|
| Fast temperature changes |
| EN 60068-2-14 Na | TA = -40°C; TB = 85°C; t1 = 30 min; t2 = < 10 s 50 cycles |
|
| Salt spray test |
| EN 60068-2-52 Kb | severity level 5 (4 test cycles) |
|
| Weight |
34.7 |
| Molded-body material |
TPU (urethane) |
| Material nut |
stainless steel (1.4404 / 316L) |
| Sealing material |
FKM |
| Number of ports splitter box |
2 |
| Drag chain suitability |
| Bending radius for flexible applications | min. 10 x cable diameter | | Travel speed | max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² | | Bending cycles | > 2 Mio. | | Torsional strain | ± 180 °/m |
|
| Remarks |
|
| Pack quantity |
1 pcs. |
|

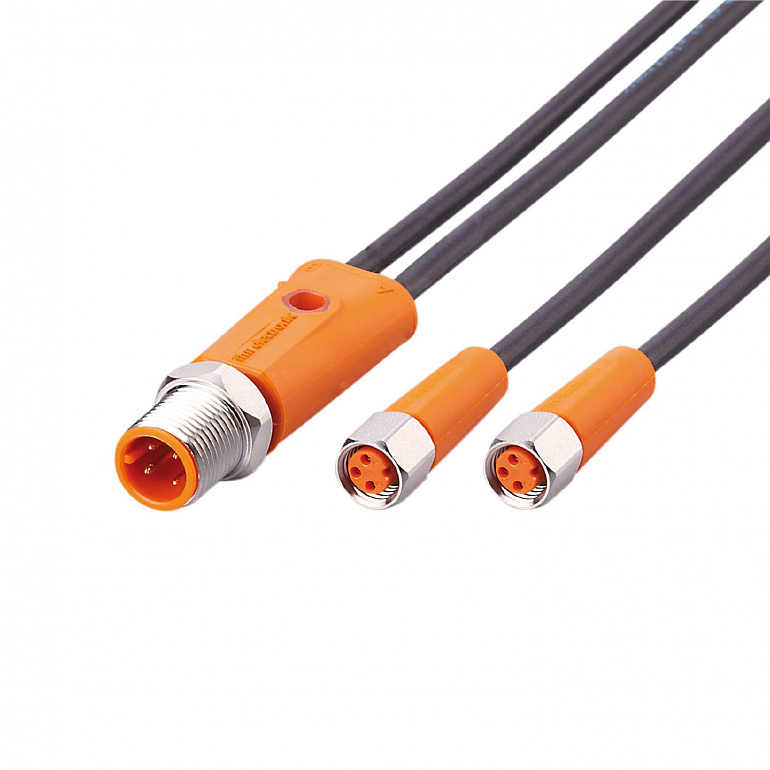

Connector: 1 x M12, straight; coding: A; Moulded body: TPU (urethane), orange; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
