| System |
Free from silicone; Halogen-free; gold-plated contacts; Drag chain suitability |
| Free from silicone |
yes |
| Operating voltage |
50 AC / 60 DC |
| Protection class |
III |
| Max. current load total |
3 |
| Ambient temperature |
-25...90 |
| Protection |
IP 65; IP 67; IP 68; IP 69K |
| Weight |
59 |
| Molded-body material |
TPU (urethane) / TPU (urethane) |
| Material nut |
brass, nickel-plated |
| Sealing material |
FKM |
| Drag chain suitability |
| Bending radius for flexible applications | min. 10 x cable diameter | | Travel speed | max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² | | Bending cycles | > 5 Mio. | | Torsional strain | ± 180 °/m |
|
| Pack quantity |
1 pcs. |
|

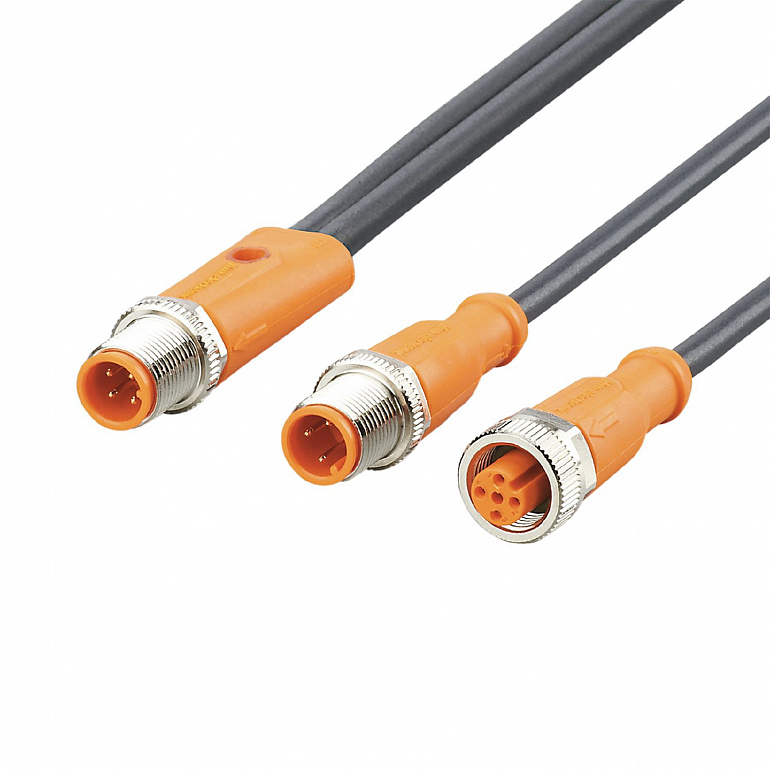

Connector: M12, straight; coding: A; Moulded body: TPU (urethane), orange; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Take into account the maximum value of the counterpart! |
