Характеристики
| Connection | AMP connector Connector |
| Terminating resistor | no |

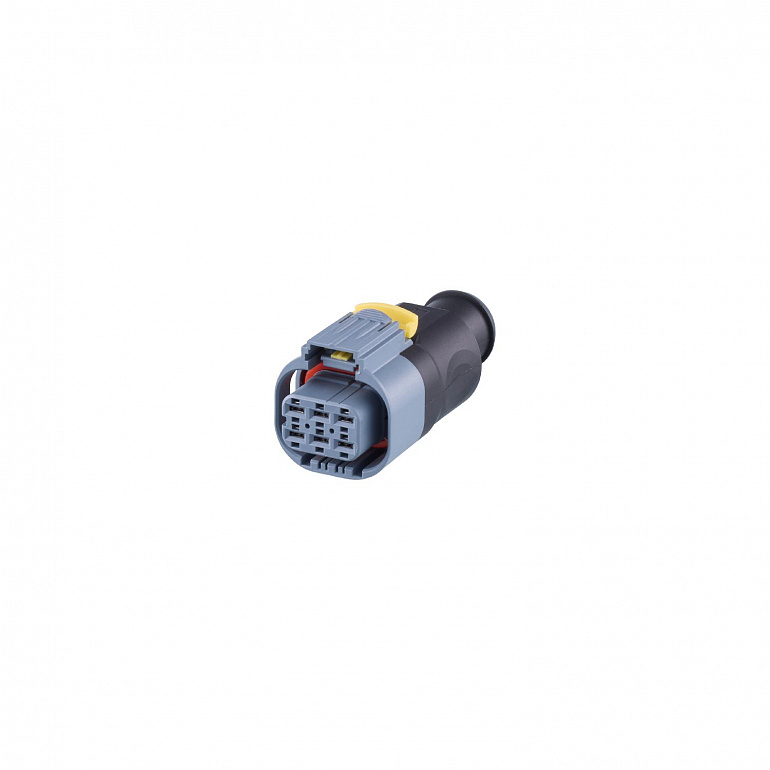

| Product designation | AMP connector |
Все характеристики
| Application | for mobile applications |
| Operating voltage | 12...24 DC |
| Protection class | III |
| Max. current load total | 16 |
| Ambient temperature | -40...100 |
| Ambient temperature (moving) | -15...80 |
| Protection | IP 65; IP 67; (mating connector plugged in) |
| Weight | 31 |
| Molded-body material | TPU (urethane), Halogen-free |
| Sealing material | silicone |
| Pack quantity | 1 pcs. |
| Connection | Connector: 1 x AMP connector, straight; Moulded body: TPU (urethane), Halogen-free, black; sealing: silicone |
Приемущества
| For use in mobile machines and vehicles |
| Large operating voltage range |
| AMP connector for the fast and easy connection to the on-board system |
| High protection rating for the requirements of harsh industrial environments |
