| System |
Halogen-free; gold-plated contacts; screened cable; Drag chain suitability |
| Application |
CAN bus; for mobile applications |
| Operating voltage |
< 30 AC / < 36 DC |
| Max. current load total |
4 |
| Ambient temperature |
-25...80 |
| Protection |
IP 67; IP 68; IP 69K |
| Weight |
499.3 |
| Dimensions |
14.5 x 14.5 x 43.9 |
| Molded-body material |
TPU (urethane) |
| Material nut |
brass, nickel-plated |
| Sealing material |
FKM |
| Drag chain suitability |
| Bending radius for flexible applications | min. 10 x cable diameter | | Travel speed | max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² | | Bending cycles | > 5 Mio. | | Torsional strain | ± 180 °/m |
|
| Pack quantity |
1 pcs. |
|

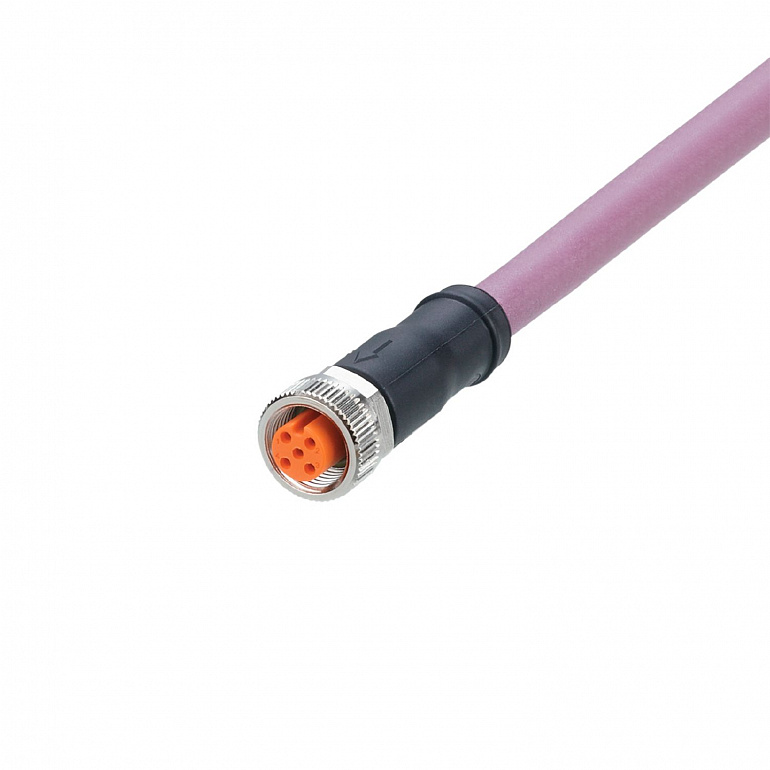

Cable: 5 m, PUR, Halogen-free, lilac, Ø 8.4 mm, screened; RD / BK: 2 x 0.75 mm² (42 x Ø 0.15 mm ) + WH / BU: 2 x 0.5 mm² (19 x Ø 0.19 mm ) + screen: 1 x 0.75 mm² (42 x Ø 0.15 mm ) |
| Connection |
Connector: 1 x M12, straight; coding: A; Moulded body: TPU (urethane), black; Locking: brass, nickel-plated; sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
