Характеристики
| Cable structure | 8 x 0,25 mm² (14 x Ø 0,15 mm) |
| Connection | 2 m PUR-Cable; M12 Connector |
| Terminating resistor | no |

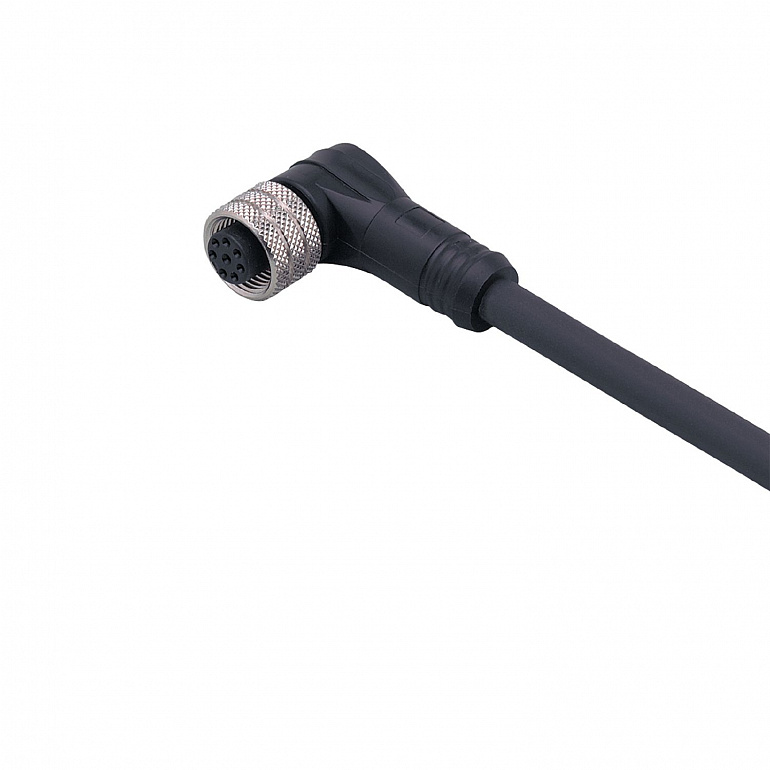

| Product designation | Female cordset |
Все характеристики
| System | screened cable |
| Application | Industrial applications |
| Operating voltage | < 30 AC / < 36 DC |
| Protection class | III |
| Max. current load total | 2 |
| Ambient temperature | -25...90 |
| Protection | IP 67 |
| Weight | 148.5 |
| Dimensions | 28 x 15 x 38 |
| Molded-body material | TPU (urethane) |
| Material nut | brass, nickel-plated |
| Pack quantity | 1 pcs. |
| Cable: 2 m, PUR, black, screened; 8 x 0.25 mm² (14 x Ø 0.15 mm ) | |
| Connection | Connector: 1 x M12, angled; coding: A; Moulded body: TPU (urethane); Locking: brass, nickel-plated; Tightening torque: 1...1.5 Nm; Shielded connection cable: shield connected |
Приемущества
| 8-pole connection |
| Shielded cable for good electromagnetic immunity |
| High protection rating for the requirements of harsh industrial environments |
| Reliable transmission of the sensor signals |
| Wide operating temperature range |
