| System |
Halogen-free |
| Application |
CAN bus; for mobile applications |
| Operating voltage |
12...24 DC |
| Protection class |
III |
| Max. current load total |
17; (wires 2+5: 4 A) |
| Ambient temperature |
-40...80 |
| Ambient temperature (moving) |
-15...80 |
| Protection |
IP 65; IP 67; (mating connector plugged in) |
| Weight |
562.1 |
| Molded-body material |
TPU (urethane) |
| Sealing material |
silicone |
| Remarks |
| Bending radius for flexible applications: min. 15 x cable diameter |
|
| Pack quantity |
1 pcs. |
| Connection |

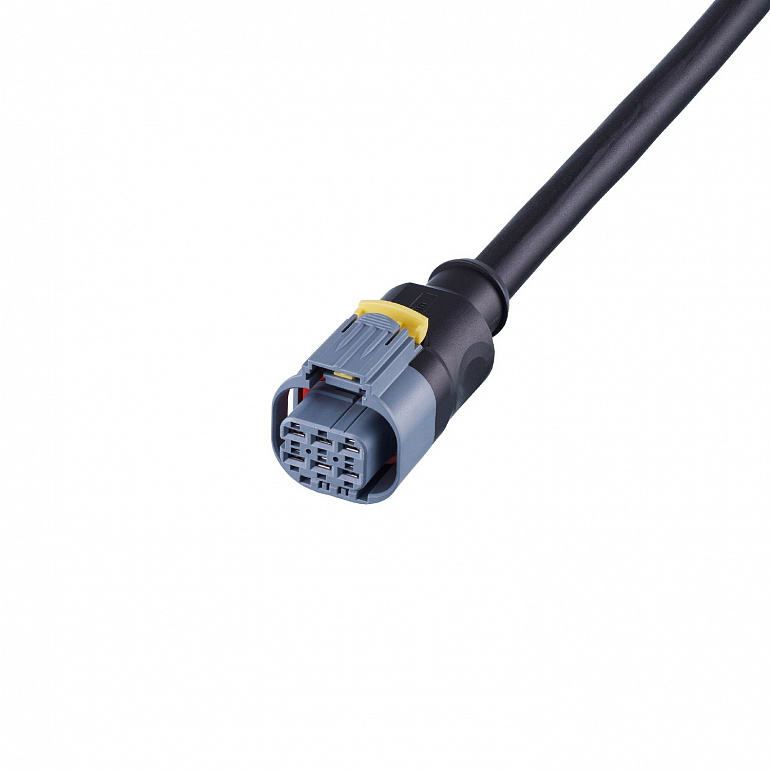

Connector: 1 x AMP connector, straight; Moulded body: TPU (urethane), black; sealing: silicone |
|
Cable: 3 m, PUR, Halogen-free, black, Ø 10 mm; 2 x 0.5 mm² (16 x Ø 0.2 mm ) + 4 x 2.5 mm² (50 x Ø 0.25 mm ) |
