| Connection | 5 m PUR-Cable; AMP MQS Connector |
| Terminating resistor | no |

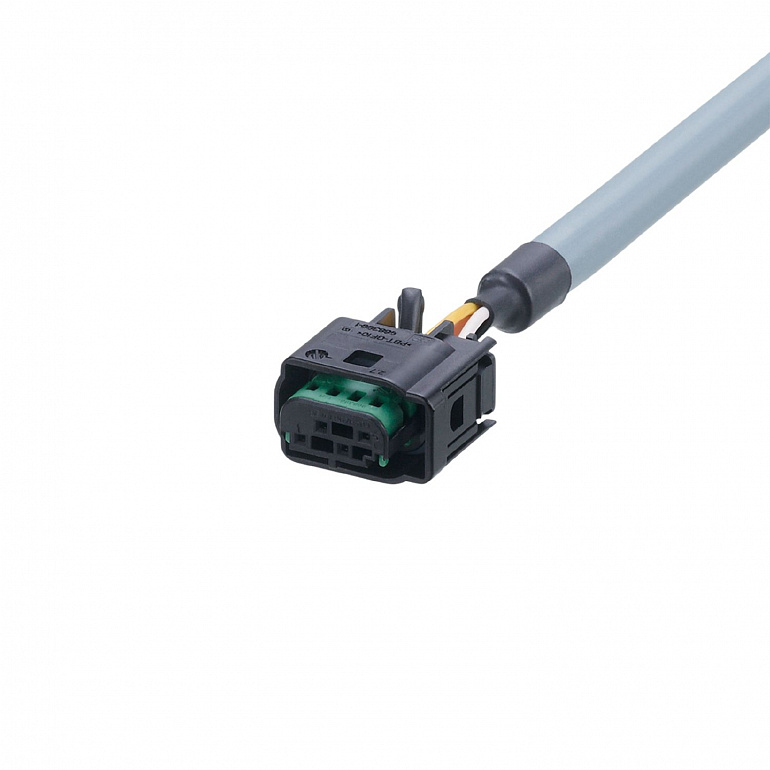

| Product designation | Cable with connector |
| Cable structure | 2 x 0,5 mm² ($paarweise_verdrillt) |
Все характеристики
| System | screened cable |
| Application | for mobile applications |
| Operating voltage | 8...32 DC |
| Protection class | III |
| Max. current load total | 4 |
| Ambient temperature | -40...80 |
| Protection | IP 20; (without resistor) |
| Weight | 456.4 |
| Dimensions | 89.5 x 33.4 x 47.3 |
| Material | housing: PBT-GF20 |
| Molded-body material | PBT |
| Pack quantity | 1 pcs. |
| Connection | Connector: AMP MQS, straight; Moulded body: PBT; Contacts: tin-plated |
Приемущества
| Suited for use in mobile machines |
| Lockable connector with reverse polarity protection |
