Характеристики
| Cable structure | 5 x 2,5 mm² |
| Connection | 20 m PVC/PUR-Cable; M12 Connector |
| Terminating resistor | no |

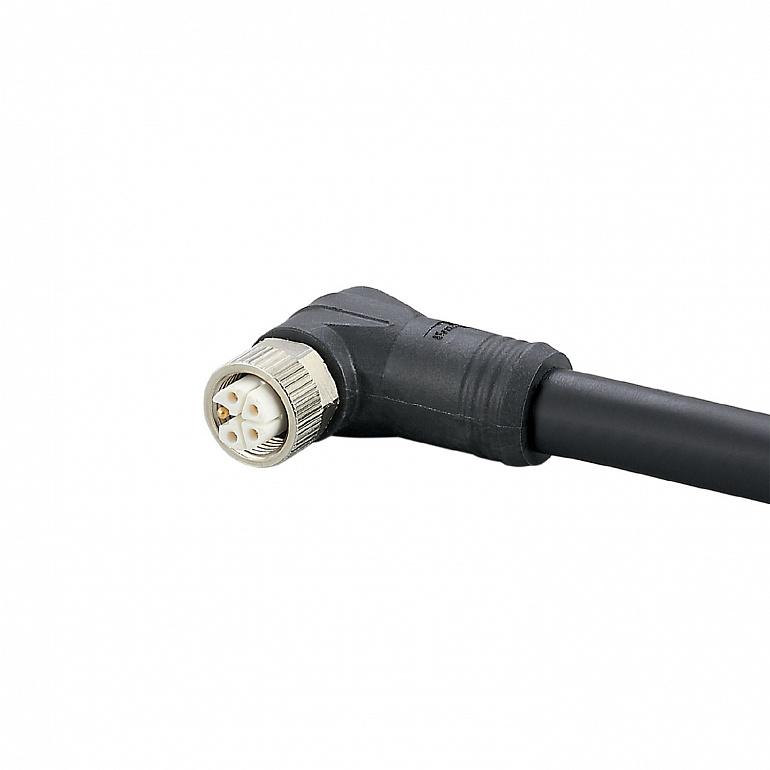

| Product designation | Female cordset |
Все характеристики
| System | gold-plated contacts |
| Design | Power cable, L-coded |
| Application | Industrial applications |
| Operating voltage | 63 DC |
| Max. current load total | 16 |
| Ambient temperature | -40...90 |
| Protection | IP 67 |
| Weight | 4143.9 |
| Dimensions | 39 x 16 x 38.1 |
| Molded-body material | TPE |
| Material nut | brass, nickel-plated |
| Sealing material | FKM |
| Pack quantity | 1 pcs. |
| Cable: 20 m, PVC/PUR, black, Ø 11.3 mm; 5 x 2.5 mm² | |
| Connection | Connector: 1 x M12, angled; coding: L; Moulded body: TPE; Locking: brass, nickel-plated; sealing: FKM; Contacts: gold-plated |
Приемущества
| Gold-plated contacts for reliable electrical connections |
| Permanent, reliable sealing even when mounted without tools |
| High protection rating for the requirements of harsh industrial environments |
| Wide operating temperature range |
| High current rating |
