| System |
Free from silicone; gold-plated contacts |
| Application |
Industrial applications |
| Free from silicone |
yes |
| Operating voltage |
< 30 AC / < 36 DC |
| Max. current load total |
2 |
| Ambient temperature |
-25...100 |
| Protection |
IP 68; IP 69K |
| Weight |
1555.5 |
| Dimensions |
15 x 15 x 46 |
| Molded-body material |
PVC |
| Material nut |
stainless steel (1.4404 / 316L) |
| Sealing material |
EPDM |
| Pack quantity |
1 pcs. |
|

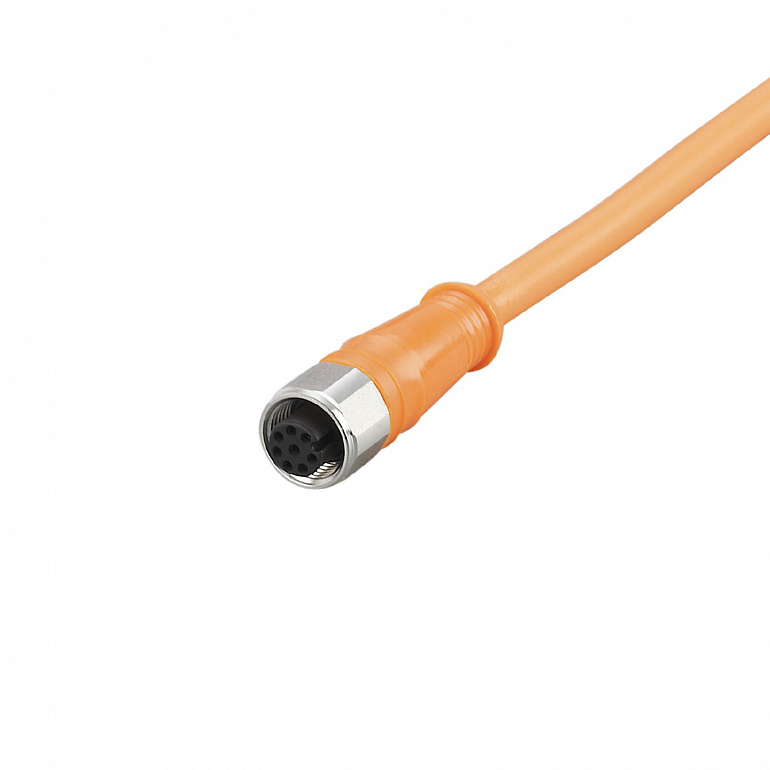

Cable: 25 m, PVC, orange, Ø 5.9 mm; 8 x 0.25 mm² (32 x Ø 0.1 mm ) |
| Connection |
Connector: 1 x M12, straight; coding: A; Moulded body: PVC; Locking: stainless steel (1.4404 / 316L); sealing: EPDM; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm |
