Характеристики
| Number of cores | 8 |
| Cable structure | 8 x 0,25 mm² (14 x Ø 0,15 mm) |
| Connection | 0.5 m PVC-Cable; M12 Connector |

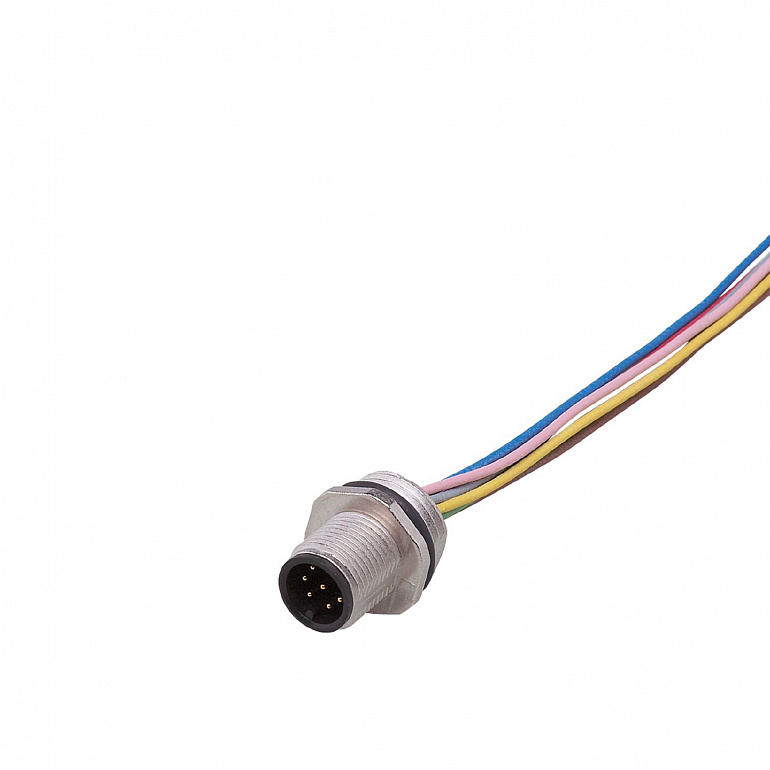

| Product designation | Male receptacle |
Все характеристики
| Operating voltage | < 50 AC / < 75 DC |
| Ambient temperature | -25...85 |
| Protection | IP 68 |
| Weight | 38.473 |
| Mounting thread | PG 9 |
| Material | housing: diecast zinc nickel-plated |
| Pack quantity | 1 pcs. |
| Cable: 0.5 m, PVC; 8 x 0.25 mm² (14 x Ø 0.15 mm ) | |
| Connection | Connector: 1 x M12, straight; coding: A |
Приемущества
| User-friendly equipment of distributors and housings with connections for connectors |
| Easy and quick installation into the container wall |
| Robust metal version |
| High protection rating for the requirements of harsh industrial environments |
| Wide operating temperature range |
