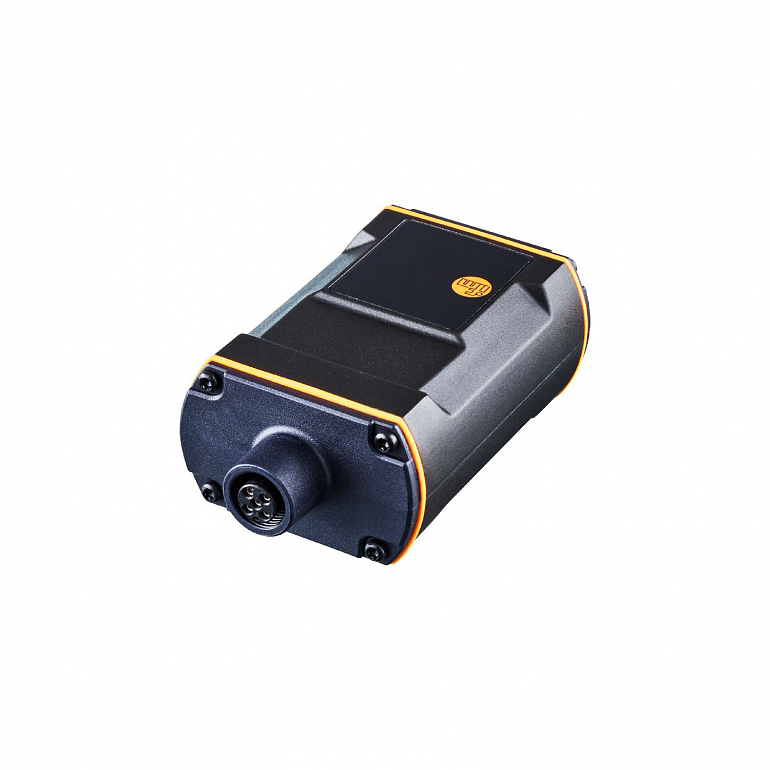

| Operating voltage |
21.6...26.4 DC; (to SELV/PELV) |
| Nominal voltage DC |
24 |
| Current consumption |
< 1230 |
| Max. current load total |
1.2 |
| Number of inputs and outputs |
Number of digital inputs: 3; Number of digital outputs: 4 |
| Number of digital inputs |
3 |
| Switching level high |
11...26.4 |
| Switching level low |
0...5 |
| Output signal |
switching signal |
| Number of digital outputs |
4 |
| Max. current load per output |
400; 640; (400 mA: red; green; blue; 640 mA: white) |
| Max. current load outputs total |
1.2 |
| Short-circuit proof |
yes |
| Communication interface |
IO-Link |
| Transmission type |
COM2 (38,4 kBaud) |
| IO-Link revision |
1.1 |
| SDCI standard |
IEC 61131-9 |
| Profiles |
| Common - I&D | Identification and Diagnosis |
|
| SIO mode |
yes |
| Required master port class |
A |
| Min. process cycle time |
4.2 |
| Supported DeviceIDs |
| Type of operation | DeviceID |
|---|
| default | 1474 |
|
| Note |
| For further information please see the IODD PDF file at "Downloads" |
|
| Ambient temperature |
-25...60 |
| Storage temperature |
-25...60 |
| Max. relative air humidity |
90; (linearly decreasing to 50 % (40 °C); non condensing) |
| Max. height above sea level |
2000 |
| Protection |
IP 65; IP 67 |
| Degree of soiling |
2 |
| EMC |
|
| MTTF |
291 |
| Weight |
130.2 |
| Weight (without accessories and packaging) |
0.001 |

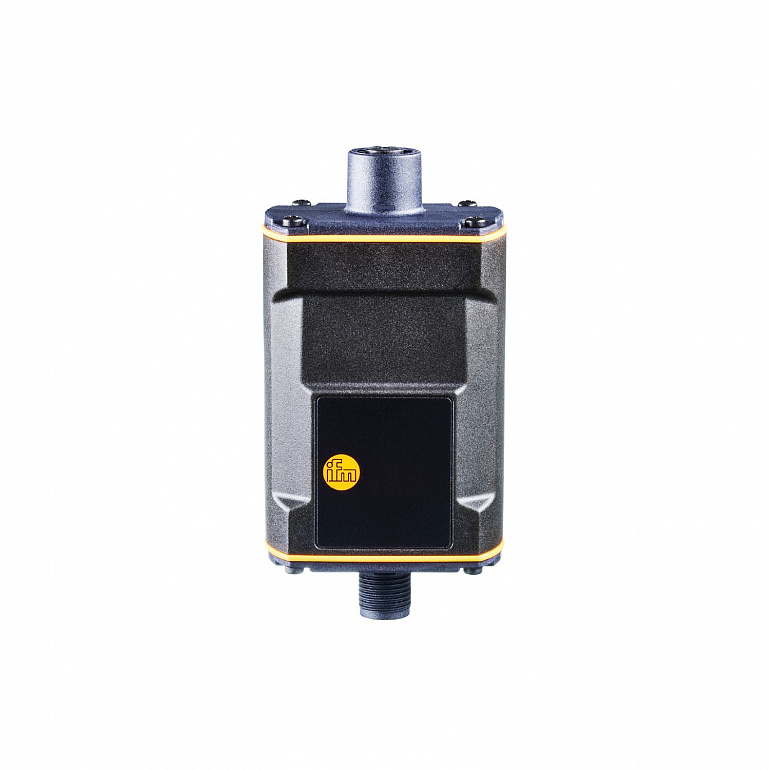

| Housing |
rectangular |
| Dimensions |
99.1 x 50 x 31 |
| Material |
housing: PA; cover: PA; sealing cover: TPE |
| Sealing material |
FKM |
| Display |
|
| Accessories (optional) |
|
| Remarks |
| Please observe the permissible voltage ranges of the connected devices, as these may differ from the IO-Link specification. | | Further information is available in the manual. | | the device complies with overvoltage category II |
|
| Pack quantity |
1 pcs. |
|

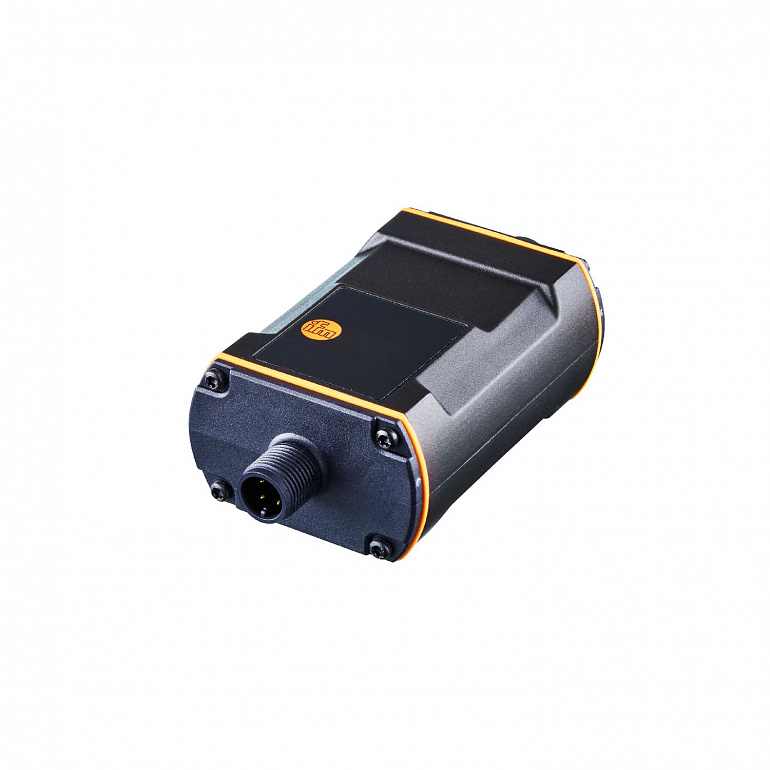

Connector: 1 x M12; coding: A; sealing: FKM |
| IO-Link Power |
Connector: 1 x M12; coding: A |
