Характеристики
| Material | Adapter: PVDF; Gasket: EPDM |

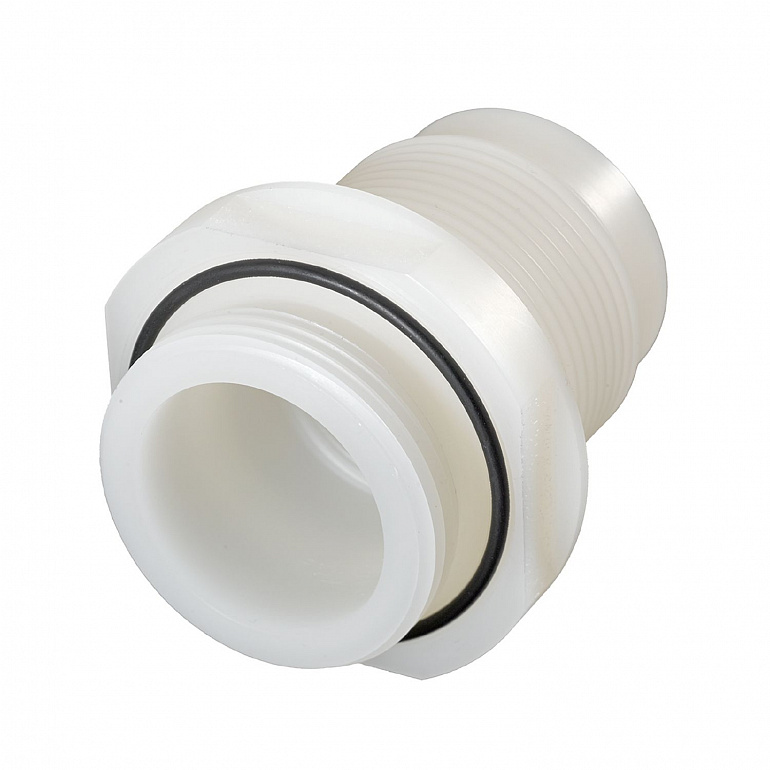

| Product designation | Mounting adapter |
Все характеристики
| Application | |
| Pressure rating | <table><tr><td>8 bar</td><td>0.8 MPa</td></tr></table> |
| Operating conditions | |
| Ambient temperature | -25...110 |
| Mechanical data | |
| Weight | 83.4 |
| Dimensions | G 1 1/4 / L = 65 |
| Thread designation | G 1 1/4 |
| Material | Adapter: PVDF; Gasket: EPDM |
| Sensor connection | threaded connection M30 x 1,5 Internal thread |
| Process connection | threaded connection G 1 1/4 external thread |
| Remarks | |
| Pack quantity | 1 pcs. |
Приемущества
| Reliable installation in a vessel wall |
| Efficient protection against soiling, impact and shock |
| For level detection with capacitive sensors in containers and tanks |
| High pressure resistance |
| Use in high medium temperatures |
