| Current consumption |
< 24 |
| Frequency band |
GPS: 1563...1587 MHz (L1); Galileo: 1559...1591 MHz (E1); Beidou: 1559...1591 MHz (B1C); GLONASS: 1593...1610 MHz (G1) |
| Note on interfaces |
| Operating voltage: 3...5,5 V DC | | Impedance: 50 Ohm | | Polarization: RHCP | | vertical | | LNA: 27 ± 1 dB | | Rauschzahl: 2.2 dB |
|
| Frequency band |
698 ...960 MHz; 710...2170 MHz; 2300...2690 MHz |
| Note on interfaces |
| Impedance: 50 Ohm | | Polarization: linear vertical | |
|
| Ambient temperature |
-40...85 |
| Protection |
IP 6K6 |
| Weight |
366 |
| Type of mounting |
Gewinde |
| Dimensions |
80 x 124 x 31 |
| Material |
PC black |
| Tightening torque |
< 5 |
| Pack quantity |
1 pcs. |
|

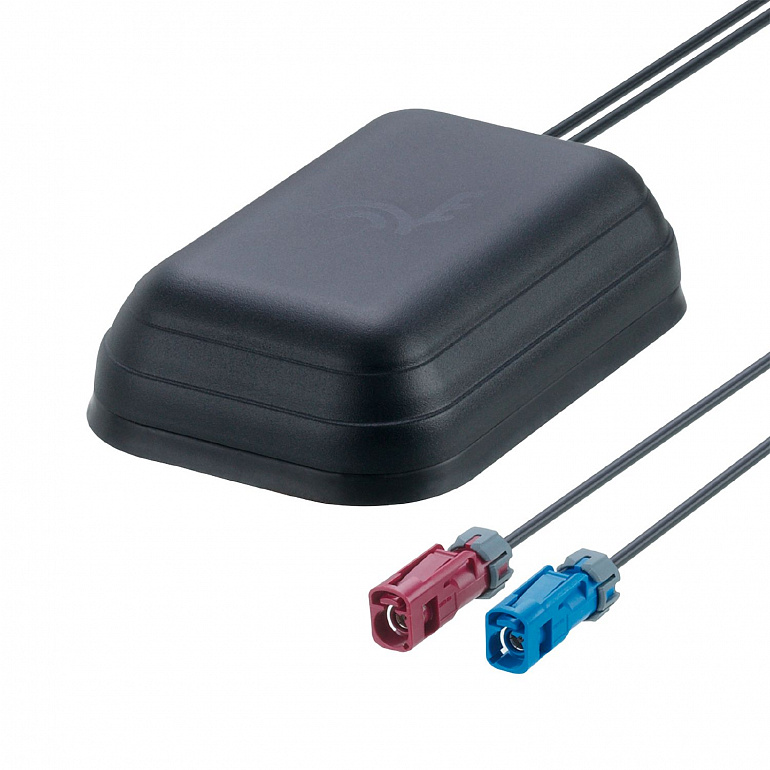

Connector: 1 x FAKRA |
|
Connector: 1 x FAKRA |
