| Design |

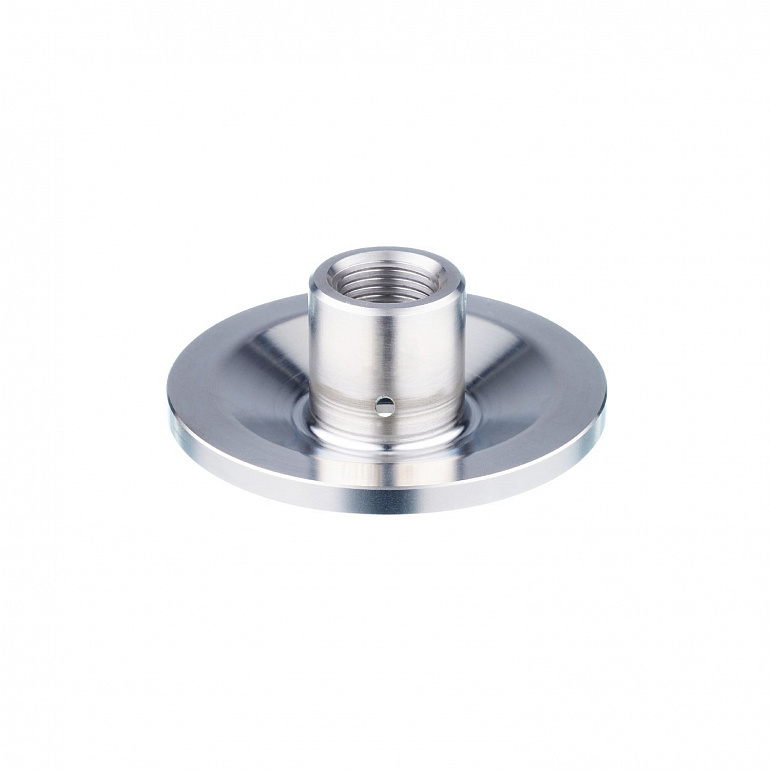

with leakage port (3A) |
| Installation |
for thick wall thicknesses and for unfavorable welding conditions |
| Pressure rating |
|
| Note on pressure rating |
| for the connection sensor - adapter |
|
| Pressure equipment directive |
A possible classification to PED depends on the application and has to be carried out by the user / operator. |
| Safety instructions |
The compatibility between medium and product material has to be checked in all applications. |
| Weight |
383.1 |
| Materials (wetted parts) |
Welding adapter: stainless steel (1.4435 / 316L) surface characteristics: Ra < 0,4 µm / Rz 4 µm |
| Sensor connection |
G 1/2 sealing cone |
| Process connection |

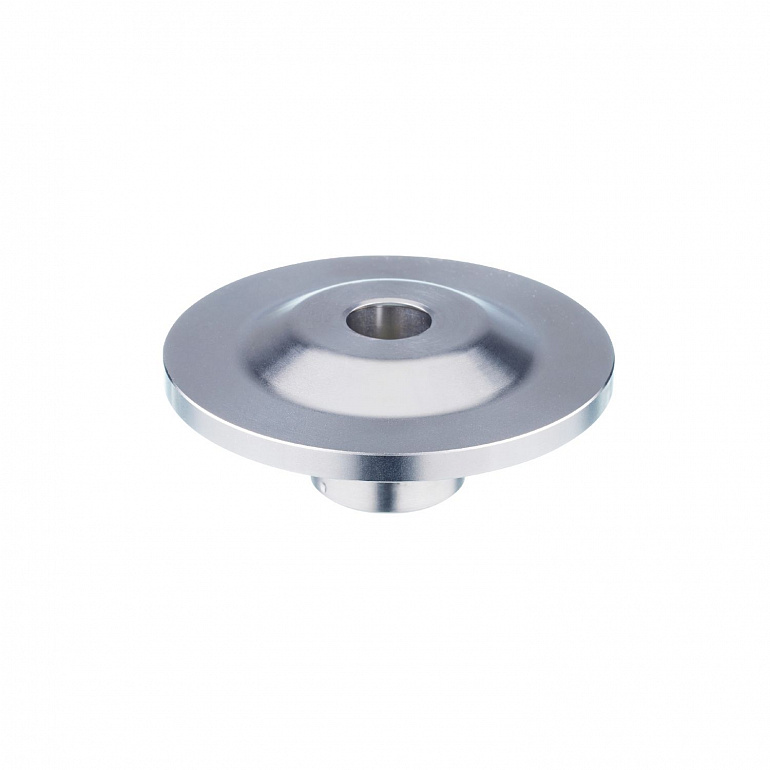

Welding adapter Ø 84,8 mm |
| Surface characteristics Ra/Rz of the wetted parts |
Ra < 0.4 µm / Rz < 4 µm |
| Pack quantity |
1 pcs. |
