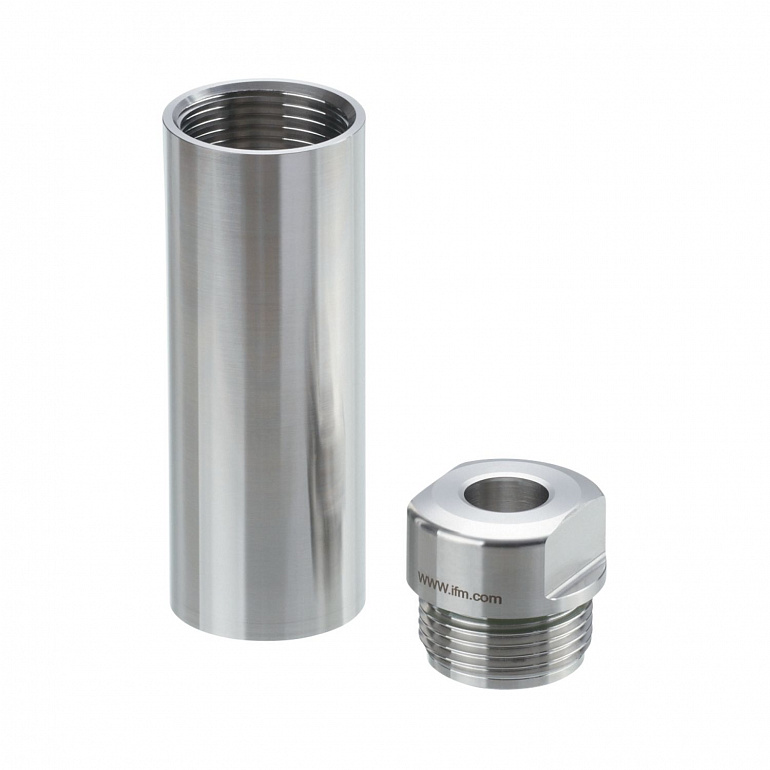

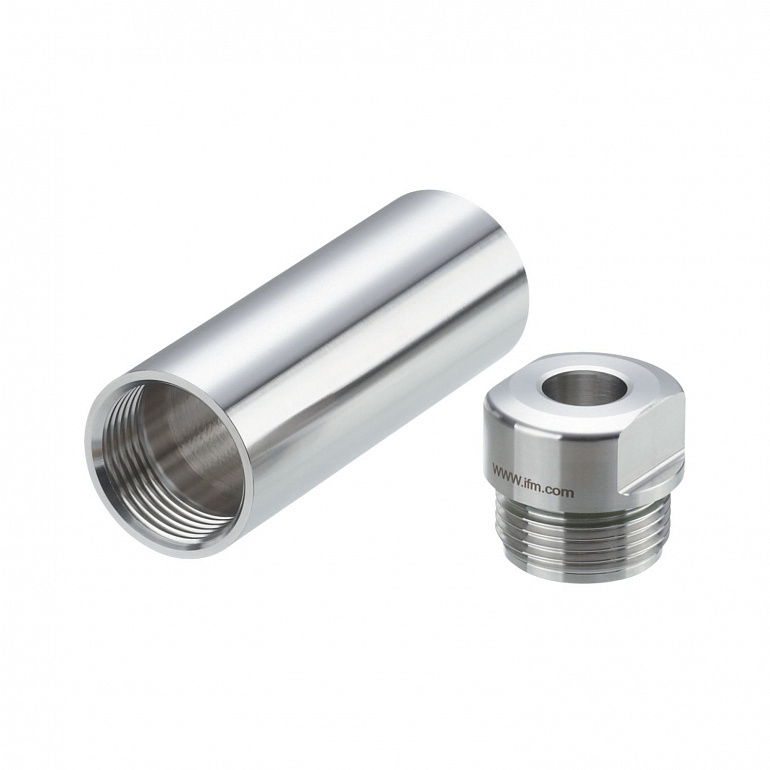

Фото
Видео
Характеристики
| Design | adapter for rear sensor installation |
| Sensor connection | G 1/2; sealing cone |
| Product designation | REAR MOUNT ADAPTER |
| Process connection | Ø 38 mm |
| Materials (wetted parts) | Adapter: stainless steel (1.4435 / 316L) surface characteristics: Ra < 0,8 µm / Rz 4 µm; weld-on pipe: stainless steel (1.4571/316Ti ); sealing: FKM |
Все характеристики
| Design | adapter for rear sensor installation | ||
| Pressure rating |
|
||
| Note on pressure rating |
|
||
| MAWP (for applications according to CRN) |
|
||
| Weight | 534.5 | ||
| Materials (wetted parts) | Adapter: stainless steel (1.4435 / 316L) surface characteristics: Ra < 0,8 µm / Rz 4 µm; weld-on pipe: stainless steel (1.4571/316Ti ); sealing: FKM | ||
| Sensor connection | G 1/2 sealing cone | ||
| Process connection | Ø 38 mm | ||
| Surface characteristics Ra/Rz of the wetted parts | Ra < 0.8 µm / Rz = 4 µm | ||
| Remarks |
|
||
| Pack quantity | 1 pcs. |
Приемущества
| For rear installation of process sensors in tanks |
| Easy, quick and secure mounting |
| Stainless steel adapter for the requirements of the food and beverage industry |
| High pressure resistance |
