| Application |
|
| Design |
for pipes, with leakage port (3A) |
| Pressure rating |
<table><tr><td>50 bar</td><td>5 MPa</td></tr></table> |
| Note on pressure rating |
<table><tr><td> for the connection sensor - adapter</td></tr></table> |
| Tests / approvals |
|
| Pressure equipment directive |
A possible classification to PED depends on the application and has to be carried out by the user / operator. |
| Safety instructions |
The compatibility between medium and product material has to be checked in all applications. |
| Mechanical data |
|
| Weight |
168.7 |
| Materials (wetted parts) |

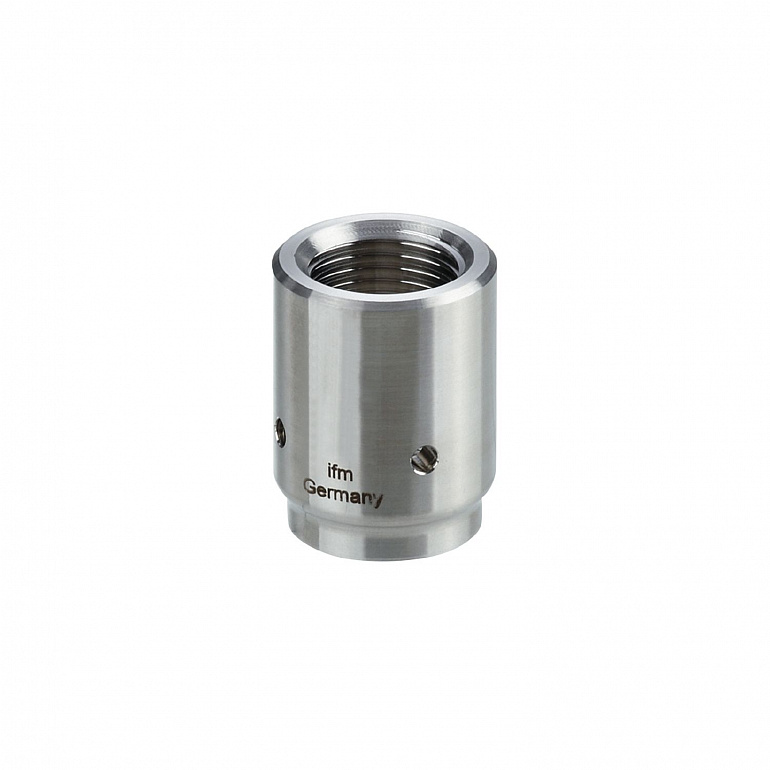

Welding adapter: stainless steel (1.4435 / 316L) surface characteristics: Ra < 0,4 µm / Rz 4 µm |
| Sensor connection |
G 1/2 sealing cone |
| Process connection |
Welding adapter 1" (25,4 x 1,65); Maße gemäß DIN 11866; Reihe C ASME-BPE |
| Surface characteristics Ra/Rz of the wetted parts |
Ra < 0.4 µm / Rz = 4 µm |
| Remarks |
|
| Pack quantity |
1 pcs. |
