| Design |
for tanks, with leakage port (3A) |
| Pressure rating |
|
| Note on pressure rating |
| for the connection sensor - adapter |
|
| MAWP (for applications according to CRN) |
50 |
| Pressure equipment directive |
A possible classification to PED depends on the application and has to be carried out by the user / operator. |
| Safety instructions |
The compatibility between medium and product material has to be checked in all applications. |
| Weight |
166 |
| Materials (wetted parts) |
stainless steel (1.4435 / 316L) |
| Sensor connection |
G 1/2 sealing cone |
| Process connection |

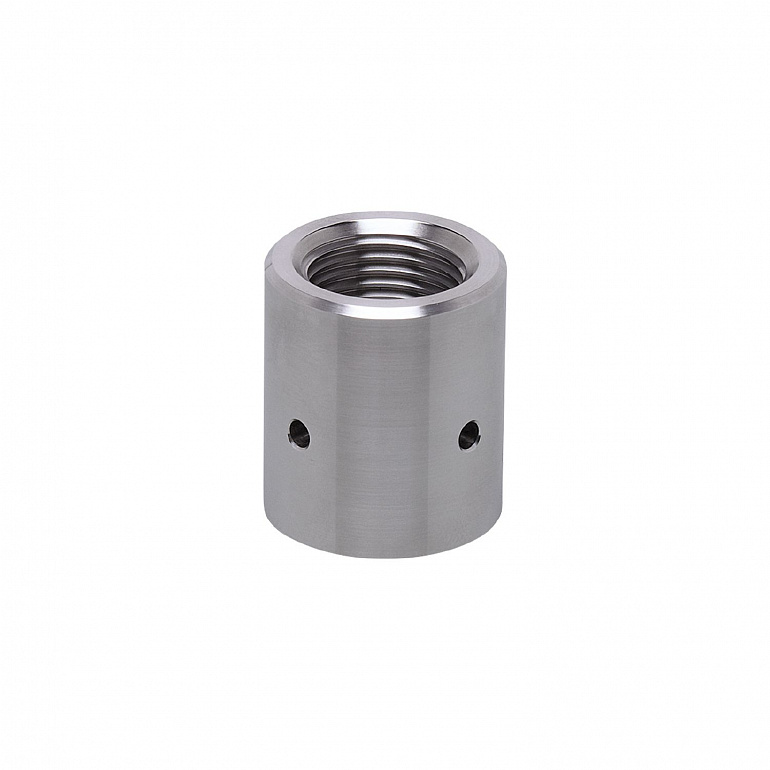

Welding adapter Ø 30 mm |
| Surface characteristics Ra/Rz of the wetted parts |
Ra < 0.4 µm / Rz = 4 µm |
| Items supplied |
|
| Pack quantity |
1 pcs. |
